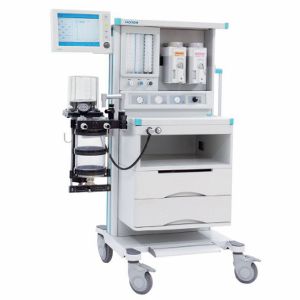

Pediatric anesthesia workstation Practice 3100

trolley-mountedwith respiratory monitoring

Features: Anesthesia Workstation for adults and children with built-in advanced, professional 10.4" TFT monitor Suitable for adult and pediatric patients ICU level SIMV mode with flow-trigger provides the synchronized ventilation in recovery stage Independent 10.4" screen, flexible monitoring angle Optional selection of O2, CO2 and anesthetic gas monitoring function Specifications: PRACTICE 3100 Pneumatic specification Gas supply O2, N2O, Air: 0.28 – 0.6 Mpa Working mode closed, semi-closed, semi-open Driven mode Pneumatically driven and electronically controlled Safety valve Operating mode Manual/Ventilation Flowmeters O2: 0-1, 1-10 l / min N2O: 0-1, 1-12 l / min Air: 0-1, 1-15 l / min O2 flush: 25 – 75l/min Ventilator Specification Patient Type Adult, pediatric Ventilation modes IPPV, PCV, SIMV(flow trigger), PS, Manual Setting Touch-key & navigator wheel knob Tidal volume 20 – 1500 ml Respiratory rate 2 - 100 bpm I:E ratio 4:1 - 1:8 Ppeep 3 - 30 cm H2O Pmax Inspiratory plateau Off, 5%-60% Ti Pressure range 5-70 cm H2O Trigger sensitivity (flow) 1 - 15 l / min Alarm Pressure: Paw high/low limit Volumes: MV high/low limit Gas: FiO2 high/low limit Respiratory rate is too high Apnea High PEEP level Low O2 supply pressure Power failure
