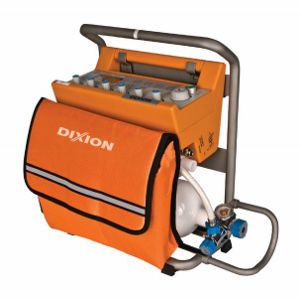

Transport ventilator Aeros 4300

emergencyelectronicmulti-mode

This space-saving and lightweight ventilator is specially designed for emergency and patient transport use. It is suitable for both adults and children. Features: Compact design Built-in respiratory monitor Screen: LCD Waveform display and multi-parameter monitoring Backup apnea ventilation Flexible power supply: A/C, D/C, rechargeable built-in battery Specification Ventilation mode A/C, SIMV, SPONT, Manual, Combined:SIGH+VCV Tidal volume 0 - 1500 ml Respiratory rate 4-99 bmp (A/C mode) 4-40 bmp (SIMV mode) I/E Ratio 2:1 - 1:4 FiO2 48-100% Pressure trigger sensitivity -2-0 kPa (above PEEP) Parameters monitored Pressure value: Ppeak Volume/Flow value: Vt, MV Time value: ftotal Real time curves: pressure/time Alarm Paw high/low Apnea AC power failure Gas supply failure Low battery Power supply AC110 - 240 V, 50 - 60 Hz, Gas supply 0,28 – 0,6 MPa (O2) Compliance Noise level ≤4mL/100Pa ≤65dB Dimensions (H×W×D) 175 x 170 x 300 mm Weight 3.5 kg
