Humidity analyzer AQUATRACE® IV - Typ W

laboratoryfor environmental analysiscompact

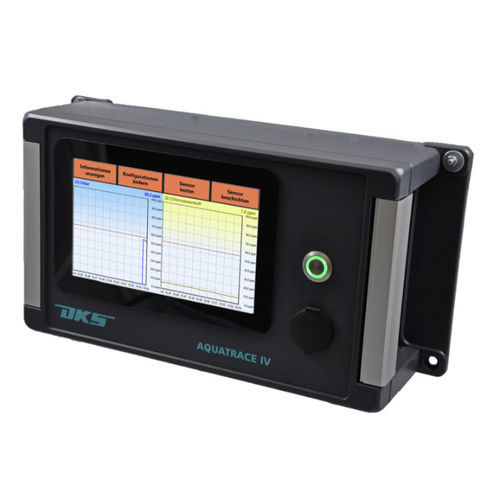

The wall mounted device AQUATRACE® - IV Typ W belongs to the group of AQUATRACE® - IV devices that serve as instruments for determination of traces of moisture / humidity traces. They operate on the basis of P2O5 sensors and can be used for determining the moisture in corrosive and all other gases (except NH3) in the ppm range. The use in chlorine gas has been proven worldwide best. The wall mounted units with IP 65 degree of protection (standalone) can be integrated directly in industrial plants. It is as a 1 or 2-channel device available. The operation of the Moisture meters ensues via a touchscreen display in 7 languages to be select Menu-driven operation and for various operating levels protected by password Measured values and operator actions are logged internally and can be read out via the USB interface The event logs are in CSV format as a daily file available The devices for measurement of traces of moisture / humidity traces are executed according with the latest NAMUR recommendations Production is carried out in close exclusive cooperation with the MSC Ltd electronic components, Grossroehrsdorf according to the latest industry standards Additionally there are the following versions for your needs The AQUATRACE 19" – version is available as a 1-, 2-, 3-, or 4-channel device Laboratory device (portable version) is also available as a two-channel device. Technical specifications Performance specifications Measuring range: 0-2000 Vppm, dew point –100 ° C - 20 ° C, ranges deviating from the standard on request Accuracy: +/- 5% of the displayed value, at least 0.4 ppmV | optional 0.04 ppmV Response time: dry to wet: T90 <5 sec;
