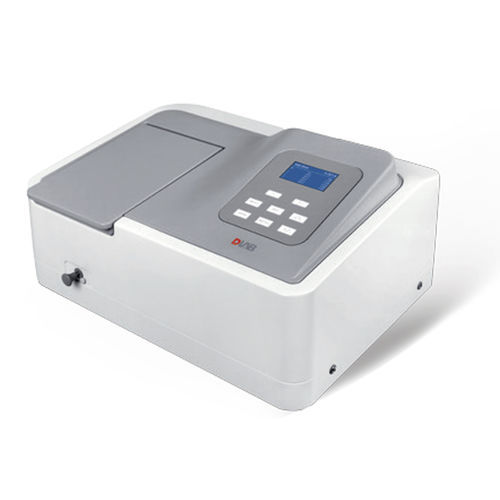

Visible spectrophotometer SP-UV1000
benchtopcompacttungsten

visible spectrophotometer
visible spectrophotometer
Add to favorites
Compare this product

Characteristics

Type
visible
Other characteristics
benchtop, compact, tungsten
Wavelength

Max.: 1,000 nm

Min.: 200 nm

Description

Key Features • User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format. • On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory. • Data can be restored after a sudden power failure. • Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors. • Automatic Switching: Tungsten& Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm. • Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available. Specifications SP-UV1000 Optical Systen Single Beam Light Source Tungsten lamp& Deuterium lamp Spectral Bandwidth 4.0nm Wavelength Range 200-1000nm Wavelength Accuracy ±2nm Wavelength Repeatability ≤1nm Photometric Range -0.3-3.0A, 0-200%T Photometric Accuracy ±0.003A@0.5A, ±0.006A@1.0A ±0.5%T@100%T Photometric Repeatability ≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T Stability ≤0.002A/h @500nm (after preheat 2 hours) Stray Light ≤0.2%T@220&360nm Sample Compartment 4-position,10mm pathlength cuvette Display LCD Output USB Port&Parallel Port (Printer) Power 110/220VAC, 50/60Hz,120W Dimension (L×W×H) 490×360×210mm Weight 14kg
