Electronic packaging machine Pratika 56 CS

automaticfilmweight

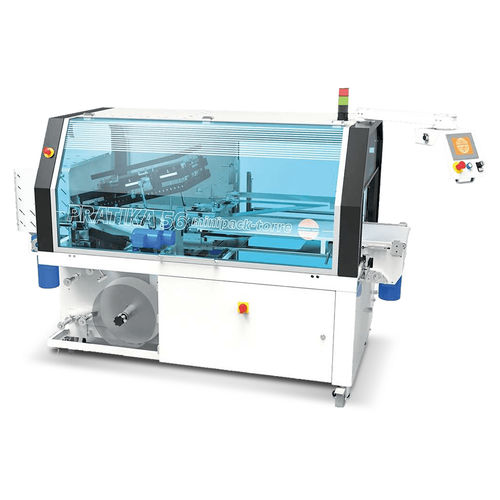

Automatic shrink wrap machine for centre sealing The PRATIKA 56 CS is a completely innovative automatic packaging machine that sets a new standard compared to other similar machines in the field of automatic shrink wrapping. Technological, mechanical and electronic content of high level together with guaranteed reliability are the shared features of a line of machines with special packaging characteristics: each provides a concrete answer to specific needs. The PRATIKA 56 CS creates a seal right in the middle of the piece (CS stands for CENTRE SEALING) moving the whole structure so that the seal closes horizontally in the middle of the product. This shrink wrap machine includes the functionality of the standard belt approach system. Technical characteristics Power supply 230V Phase ph1 Max installed power 2.5 kW Air supply 5 bar Working dimensions of sealing bars 600x400 mm Max product dimensions 600x400 h.240 mm Max reel dimensions (diameter) 300 mm - - Max reel dimensions (width) 700 mm Height of worktop 870 mm (h. infeed belt)
