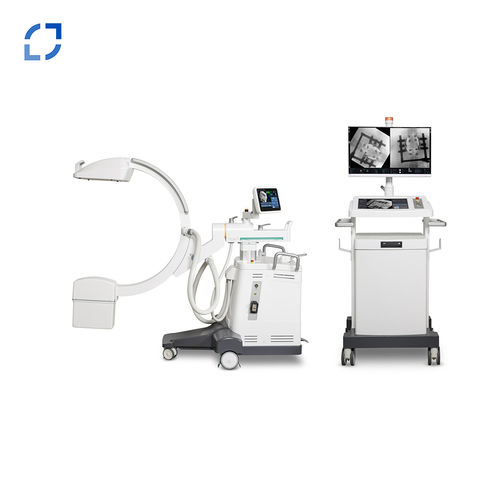

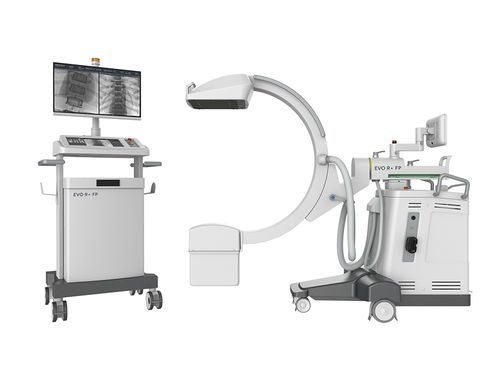

Mobile C-arm EVO R+ FP

with flat panel detectorwith integrated video monitor

Product overview
EVO R+ FP is a mobile surgical C-arm designed to acquire real-time fluoroscopic X‑ray images in operating rooms during diagnostic, interventional and surgical procedures. The C-shaped arm enables multi-angle rotations around the patient for visualization of bones, vessels, organs and device placement. The system is compact for use in confined or crowded OR settings and supports adult and pediatric examinations.

Enhanced flexibility

• Optimized footprint and compact dimensions for crowded spaces
• Large free space for closer access to the table and patient
• Natural balance design that resists drift for precise positioning

Effortless positioning

• Intuitive manual motion control with color-coded axes and ergonomic handles
• Central brake and driving handle positioned for operator convenience
• Motorized vertical movement for rapid height adjustments
• Twin-wheel high-diameter casters for smooth transport and sliding

Powerful & reliable device

• Monoblock generator options: 5 kW or 20 kW
• Quick boot-up time < 1 minute for fast readiness
• Energy Storage Unit (ESU) option to reach 20 kW from a standard outlet
• Advanced water-cooling system for extended procedures
• Uninterruptible Power Supply (UPS) providing approximately 30 minutes backup

Radiation dose saving

• New generation graphite carbon grid for dose efficiency
• Laser targeting device for radiation-free positioning
• Virtual collimator with rotating shutters to position without dose
• Automatic Patient Recognition (APR) programs to optimize image quality/dose ratio

Excellent image quality

• High-resolution flat panel detector options: 23 × 23 cm or 31 × 31 cm
• Full-resolution visualization on a 4K monitor for live and reference images
• Frame rate up to 30 images/second
• A.I.-powered image processing for enhanced clarity
• Touchscreen rotating monitors for operator setup and surgeon viewing

Software & workflow (ADAM)

• Intuitive imaging interface designed to minimize operator training
• Automated features: protocol parameter setup, image storage and processing
• Operating room tools: LIH, image reversal/rotation, live‑reference swap, DSA and touchscreen handling

Regulatory & intended use
EVO R+ FP is a Class IIb medical device manufactured by TECHNIX S.P.A. and bears the CE marking. It is certified in the European Union under Medical Device Regulation 2017/745/EU by IMQ (CE 0051) for fluoroscopic X‑ray examinations on adult and pediatric patients during diagnostic, interventional and surgical procedures. Read the operating instructions carefully. Photos are non‑contractual.

Technical specifications

• Commercial name (model): EVO R+ FP ADAM
• Manufacturer: TECHNIX S.P.A.
• Medical classification: Class IIb
• CE certification: certified in EU under MDR 2017/745/EU by IMQ (CE 0051)
• Indication: fluoroscopic X‑ray examinations for adult and pediatric patients (diagnostic, interventional, surgical)
• Flat panel detector options: 23 × 23 cm or 31 × 31 cm
• Monitor: 4K full-resolution monitor for live and reference images; touchscreen rotating monitors
• Frame rate: up to 30 images/second
• Generator options: monoblock 5 kW or 20 kW; ESU system to reach 20 kW from standard outlet
• Boot-up time: < 1 minute
• Cooling: advanced water-cooling system
• Power backup: UPS with ~30 minute backup
• Movement and ergonomics: motorized vertical movement, color-coded axes, ergonomic central brake/drive handle, twin-wheel high-diameter casters
• Radiation dose reduction features: graphite carbon grid, laser targeting, virtual collimator, APR programs
• Image processing: A.I.-powered algorithms and a full set of OR imaging tools (LIH, DSA, live-reference)
