Endoscopy suction system ASI series

surgeryliquids

Description

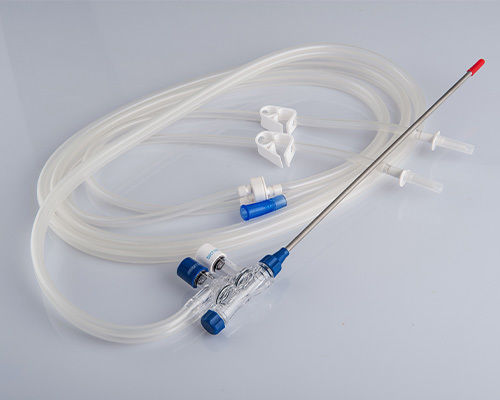

The Disposable Surgical Suction‑Irrigation System (Trumpet Valve type) is a single‑use device designed for controlled irrigation and rapid aspiration of fluids and debris during laparoscopic and endoscopic procedures. The trumpet‑style ergonomic valve provides color‑coded controls and tactile feedback for intuitive one‑handed operation. Available in 5 mm and 10 mm instrumentation diameters, with cannula lengths of 330 mm and 450 mm and optional 45° elbow cannula to improve access and visualization. The set includes 12 ft (≈3.6 m) DEHP‑free medical tubing with single‑spike or dual‑spike configurations and is certified to CE MDR and CFDA standards.

Clinical Applications

• Laparoscopic general surgery – abdominal cavity irrigation and aspiration to manage fluids and debris (e.g., cholecystectomy, appendectomy, hernia repair).
• Gynecological laparoscopy – irrigation and suction support during hysterectomy, ovarian cystectomy and adnexal procedures.
• Urological endoscopic and laparoscopic procedures – controlled flushing and suction to maintain clear visibility.
• Colorectal and gastrointestinal laparoscopy – fluid control and tissue/debris removal during minimally invasive colorectal interventions.
• Restricted access or confined‑angle procedures – use of 45° elbow cannula options to improve reach and visualization when port angles are limited.

Compatible Instruments & Equipment

• 5 mm and 10 mm trocars and laparoscopic ports.
• Hospital wall suction systems, vacuum regulators and suction canisters.
• Irrigation fluid sources via single‑spike or dual‑spike tubing connections.
• Laparoscopic and endoscopic imaging systems for operative field visualization.
• Operating room fluid management accessories and disposable tubing sets.

Features

• Regulatory certification – CE MDR and CFDA certified.
• Intuitive control – trumpet valve enabling one‑handed, continuous flushing and suction with tactile feedback.
• Anti‑glare / material options – choice of anti‑glare or non‑conductive cannula materials to reduce reflection and electrical conduction risk.
• Safety tubing – 12 ft (≈3.6 m) soft, low‑torque DEHP‑free medical tubing.
• Infection control – single‑use sterile design to prevent cross‑contamination.

Specifications / Technical details

• Materials: DEHP‑free medical‑grade materials; options for anti‑glare metal cannula or non‑conductive plastic cannula.
• Tubing length: 12 ft (approx. 3.6 m); available with single‑spike or dual‑spike configuration.
• Instrumentation diameters: 5 mm and 10 mm.
• Cannula length options: 330 mm and 450 mm; optional 45° elbow configuration.
• Certifications: CE MDR and CFDA.
• Packaging: typically 12 PCS/CTN.
• Product variants:
  ASI-0007-000 — Trumpet type, 12ft, Dual Spike — 5x330mm — 12 PCS/CTN
  ASI-0085-000 — Trumpet type, 12ft, Single Spike — 5x330mm — 12 PCS/CTN
  ASI-0086-000 — Trumpet type, 12ft, Dual Spike — 5x450mm — 12 PCS/CTN
  ASI-0087-000 — Trumpet type, 12ft, Dual Spike — 10x330mm — 12 PCS/CTN
  ASI-0089-000 — Trumpet type, 12ft, Dual Spike — 5x330mm (45° Elbow) — 12 PCS/CTN
