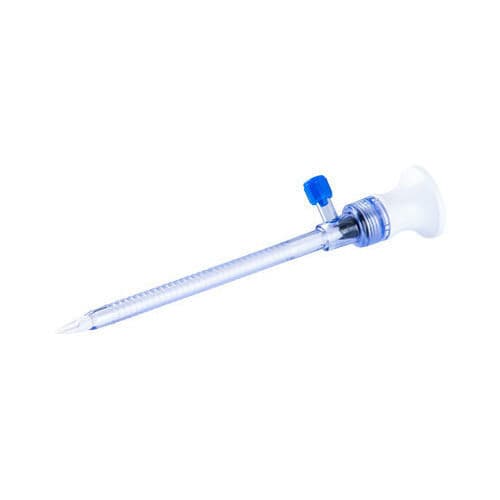

Laparoscopic trocar ATS-009 series

single use

Product Overview
The Classic Trocar establishes a controlled access path for laparoscopic instruments and endoscopes in minimally invasive procedures. It features a traditional trocar structure with an integrated valve system to control gas leakage during instrument exchange and to help maintain pneumoperitoneum. Supplied EO-sterilized as a single-use device and available for OEM and private-label programs.

Typical Clinical Applications

• General Laparoscopic Surgery
• Laparoscopic Abdominal Procedures
• Gynecological Laparoscopy
• Urological Laparoscopy
• Routine Minimally Invasive Surgery Workflows
• Standard Instrument Access Setup

Compatible Instruments & OR Setup

• Standard laparoscopic trocars and cannula-based access workflows
• Laparoscopic graspers and dissectors
• Laparoscopic scissors and clip appliers
• Laparoscopic endoscopes and visualization systems
• Standard insufflation setups for pneumoperitoneum

Key Features

• Classic Trocar Design
  Traditional trocar geometry providing stable and reliable laparoscopic entry.
• Integrated Valve System
  Built-in valve reduces gas leakage during instrument insertion and exchange.
• Standard Length Configuration
  100 mm standard length with multiple diameter options to cover common laparoscopic needs.
• EO-Sterilized, Single-Use
  Supplied as disposable EO-sterilized devices to support OR infection-control protocols.
• Regulatory & Supply Readiness
  CFDA certified and available for OEM and private-label supply programs.

Packaging and Item Specifications
Item No. | Specification | Package
ATS-0091-000 | Classic Trocar, 5mm-100L | 40 PCS/CTN
ATS-0092-000 | Classic Trocar, 10mm-100L | 24 PCS/CTN
ATS-0093-000 | Classic Trocar, 12mm-100L | 24 PCS/CTN

Technical Specifications

• Type: Classic trocar design for stable, cost-effective laparoscopic access
• Valve: Integrated valve system for air-leak control and pneumoperitoneum maintenance
• Length: 100 mm (standard)
• Diameter options: 5 mm / 10 mm / 12 mm
• Sterilization: EO-sterilized
• Use: Single-use disposable
• Certification: CFDA certified
• Packaging: ATS-0091-000 (5mm-100L) – 40 PCS/CTN; ATS-0092-000 (10mm-100L) – 24 PCS/CTN; ATS-0093-000 (12mm-100L) – 24 PCS/CTN
• Supply: OEM and private-label services available for distributors
