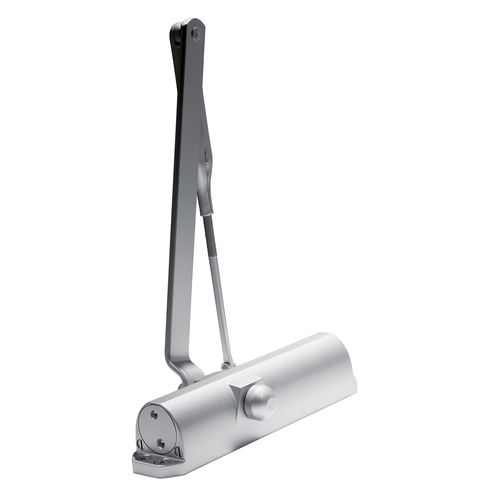

The 7300 Series offers a compact design and is available in an assortment of sprayed finishes to complement any opening's decor. These features, along with numerous installation options and fixed spring sizes, make this door closer an ideal solution in a variety of applications.
Door closer ANSI/BHMA Grade 1 certified.#
Fixed spring sizes
Quick and easy to install
Adjustable backcheck
Constant speeds
Controlled opening with backcheck feature
The 7300 Series features a backcheck to provide a cushioning effect in opening.
Constant speeds
The 7300 Series closer has two independent valves to separately control sweep and latch closing speeds and provide constant speeds when temperatures change.
The 7300 Series closers
offer modern styling for a
new era of safe and reliable
door control.
The 7300 Series offers a
compact design and is
available in an assortment
of sprayed finishes to
complement any opening's
decor. These features,
along with numerous
installation options and
fixed spring sizes, make this
closer an ideal solution in a
variety of applications
Technical details
• Fixed spring sizes 3, 4,
and 5.
• Non-handed for regular,
top jamb, and parallel
arm applications.
• Quick and easy to install.
• Compact design.
• Two noncritical adjusting
valves (sweep and latch)
work to provide
consistent closing speeds
under a wide variety of
temperatures.
• Adjustable backcheck
provides cushioning when
the door is abusively
opened.
• Available with optional
self-drilling screws for
steel door and frame
applications (DPK86).
• Available with optional
self-tapping screws for
aluminum door and
frame applications
(TPK86).
