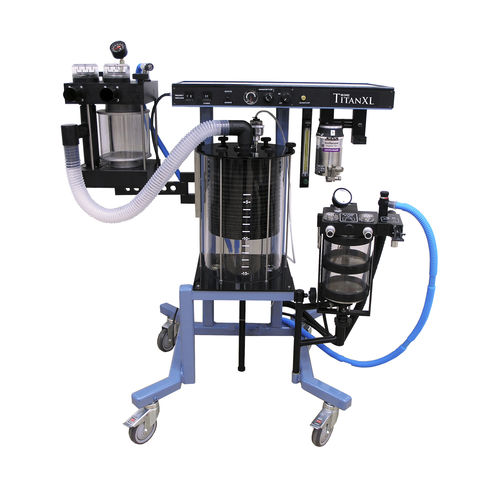

The DRE Titan XL Large Animal Anesthesia Machine is a complete anesthesia support system. The Titan XL is designed for use with Equine, Bovine, Zoology, and other large animal anesthesia techniques. The system can be used for spontaneous breathing or the user may utilize the popular Drager AVE ventilator which is an electronically controlled, time cycled driven anesthesia ventilator capable of delivering from one-half to 15 liters of tidal volume at 1 to 99 breaths per minute and I:E ratios from 1 to 2 to 1 to 4.5.
For use with large animals
5-15 liters of tidal volume available
0-10 liters per minute O2 Flow meter
Ventilator is time cycled and electronically controlled
Frequency control variable from zero to ninety-nine breaths per minute in one BPM increments
Inspiratory flow controlled through operator adjustable regulator
Touch control tidal volume adjustment
Vapor exclusion system protects from both vaporizers delivering agent. One is in use, while the other shuts off.
Top of machine acts as a storage shelf; particularly good for placing a monitor on
Extended inspiratory and expiratory ratios
Large animal sized endotracheal tubes available upon request
15 liter: P020105
30 liter: P02010
CO2 absorber, bellows, refurbished drager ventilator, 2 circuits, and breathing circuits. Does not include the foal absorber.
1 Year Warranty
