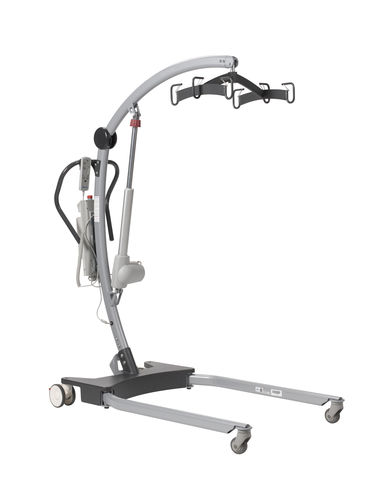

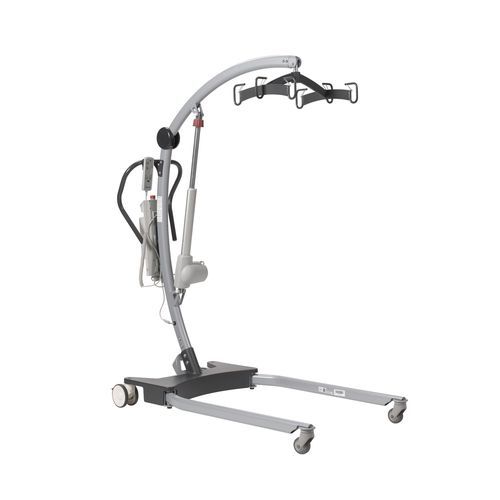

Manual patient lift Enhance 270 Hoist

electricbattery-operatedon casters

Overview
The Enhance 270 Hoist is an electrically powered mobile patient lift engineered for safe, controlled transfers of users up to 272 kg (600 lbs). Its fully powered operating base and large braked rear castors deliver stability and manoeuvrability in clinical and home-care environments, reducing caregiver physical effort while enabling transfers from floor level to elevated surfaces.

Key Features

• Six-point cradle with spring clips for secure sling attachment
• Ergonomic push handles with multiple hand positions
• Weight capacity 272 kg (600 lbs)
• Fully powered operating base for easy manoeuvring
• Lift range 50–170 cm for floor-to-surface transfers

Features (detailed)

• Safe working load 272 kg to accommodate heavier users
• Electrically operated lift and electrically opening legs to reduce caregiver strain
• Lift range 50–170 cm enabling transfers from floor level to higher surfaces
• Fully powered base and large braked rear castors for manoeuvring around furniture and over uneven floors
• Six-point cradle with spring clips providing a wider footprint for user comfort and security
• User-friendly handset and LCD with battery fuel indicator on handset and Lift Control Module
• Battery rechargeable on or off the hoist; battery and external charger stand included as standard
• Emergency stop and both manual and electric lowering/lifting facilities
• Overload sensor and motor anti-entrapment protection
• Audible alerts for low battery and overload conditions
• Maintenance monitoring by months or lift cycles
• Turning diameter: 142 cm for tight-space manoeuvres
• Compatible with the full range of Drive DeVilbiss slings

Options Available
Enhance 270 Hoist - PR51FLP600 (standard product designation / ordering reference).

Product Specifications

• Spec type: PR51FLP600
• Height (min-max): 68–194 cm
• Width: 77 cm (30.3")
• Battery cell type: Lead‑Acid 2.9 Ah
• Product weight: 71 kg (157 lbs)
• Safe working load (SWL): 272 kg (600 lbs)
• Lift range: 50–170 cm
• Height of legs: 12 cm
• Internal leg width (closed/open): 62.5 cm / 100 cm
• External leg width (closed/open): 77 cm / 114 cm
• Base length: 143.5 cm
• Turning diameter: 142 cm
• Electrical shock protection: TYPE BF - Class II
• Product warranty: 1 year

Downloads (available as product documents)

• Instruction for Use / User Manual (PDF) - IFU
• Enhance 270 product brochure (PDF)
• UK Declaration of Conformity for PR51FLP600 (PDF)

Technical specifications

• Safe Working Load (SWL): 272 kg (600 lbs)
• Lift range: 50 cm to 170 cm
• Turning diameter: 142 cm
• Internal leg width (closed/open): 62.5 cm / 100 cm
• External leg width (closed/open): 77 cm / 114 cm
• Base length: 143.5 cm
• Height (min-max): 68 cm - 194 cm
• Height of legs: 12 cm
• Battery: Lead‑Acid 2.9 Ah; charge on or off the hoist
• Product weight: 71 kg (157 lbs)
• Electrical protection: TYPE BF - Class II
• Safety: overload sensor, motor anti‑entrapment, emergency stop, audible alerts
• Compatibility: compatible with Drive DeVilbiss sling range
