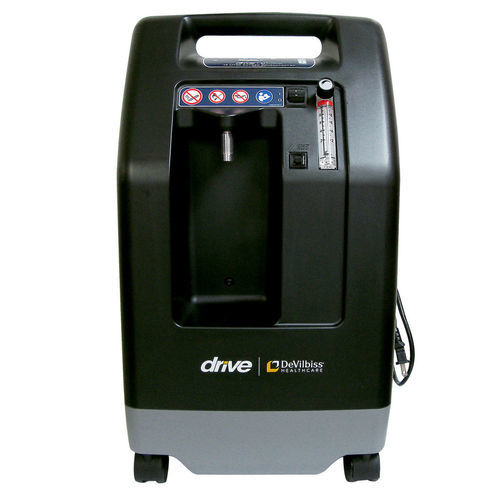

Medical oxygen concentrator Drive DeVilbiss

compactcontinuous flow

Overview

• Based on the proven 525 platform, the 1025 Oxygen Concentrator delivers adjustable oxygen flow to meet clinical needs from 2.0 to 10.0 L/min.
• Assembled in the USA and built in the same enclosure as the 5 L (525) unit for a reduced footprint and lighter weight compared with competing 10 L units.
• Compatible with cylinder transfill systems; an optional Transfill Caddy (sold separately) mounts to the unit via a steel frame and supports an 18 x 14 inch shelf up to 40 lbs.
• Equipped with DeVilbiss OSD® (Oxygen Sensing Device) to monitor oxygen purity and support longer, reliable service intervals.
• Patient-facing controls, high-visibility LEDs, protected cannula fitting and recessed humidifier nook enhance safe clinical use and reduce risk of damage.

Product identifiers

• Item #: 1025DS
• UPC #: 885304022466

Key specifications
Delivery rate: 2.0 to 10.0 L/min
Oxygen concentration: 87–96% (2–10 L/min)
Power: 120 VAC, 60 Hz
Average power input: 639 W
Weight: 42 lbs
Footprint: identical to 5 L (525) unit
Warranty: 3 years (limited)

Accessories & compatibility

• Compatible with cylinder transfill systems.
• Transfill Caddy (sold separately) attaches via steel frame and supports an 18 x 14 inch shelf up to 40 lbs.
• Replaceable/accessory items: intake, compressor and final bacteria filters; humidifier bottle; transfill supply tubing.

Technical specifications

• Delivery rate: 2.0–10.0 L/min
• Oxygen purity: 87–96% at 2–10 L/min
• Power: 120 VAC, 60 Hz
• Average power input: 639 W
• Weight: 42 lbs
• Footprint: same as 5 L (525) unit
• OSD® (Oxygen Sensing Device) standard
• Controls: accessible patient controls; high-visibility LEDs
• Humidifier: recessed humidifier nook to protect humidifier
• Protected cannula fitting
• Warranty: 3 years (limited)
