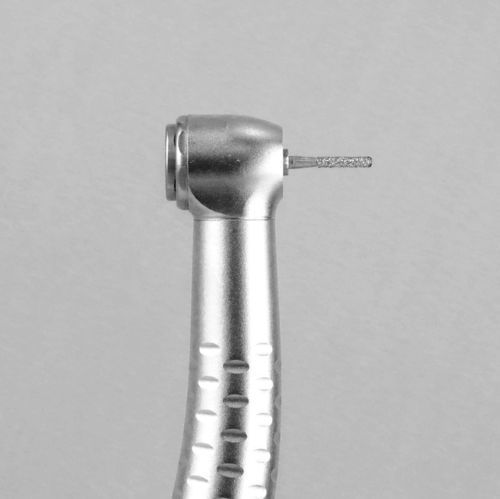

Surgical handpiece SimpliAirfor dental surgerydentalair
Add to favorites
Compare this product
Characteristics
- Applications
- dental, for dental surgery, surgical
- Operation
- air
- Gear ratio
- direct
- Ergonomics
- ultra-mini, 45°
- Material
- stainless steel, titanium, brass
- Lighting technology
- with LED light
- Spray type
- quadruple external spray
- Other characteristics
- high-speed
- Speed
Min.: 350,000 rpm
(2,199,114.9 rad.min-1)Max.: 450,000 rpm
(2,827,433.4 rad.min-1)- Sound level
68 dB
- Head height
11.2 mm, 13.5 mm
(0.4 in, 0.5 in)- Head diameter
9.2 mm, 11.2 mm
(0.4 in, 0.4 in)
Description
Product name
SimpliAir High Speed air turbine handpiece — zero‑suction high‑speed dental turbine for clinical use.
Key features
Coupling / Compatibility
Design & operation
Product families / variants
Usage notes
Specifications / Technical data
SimpliAir High Speed air turbine handpiece — zero‑suction high‑speed dental turbine for clinical use.
Key features
- 100% zero‑suction design: DTL aerodynamic anti‑retraction system prevents blood, saliva or other biological material from being drawn back into the handpiece, reducing cross‑contamination and extending cartridge life.
- Long‑lasting clamping: DTL 3 Points Spring Chucking dynamically increases retention with speed (up to ~40 N) to enhance bur stability at high rpm.
- Quick Swap Coupling (QD): QD connection options enable rapid handpiece exchange without unscrewing threads, saving chair time. Multiple QD types and compatibility options are available.
- Head variants: Ultra‑Mini, Standard and Surgical head geometries to match access and visibility requirements.
Coupling / Compatibility
- QD coupling codes shown on product page: HP1QD, HP2QD, HP45QD (including NSK® QD variants where indicated).
- Other interfaces referenced: Q4Q, Q2Q, Q4Q‑W, Q2Q‑W, external Q4Q‑W, Midwest 4‑hole, Borden 2‑hole. LED and water‑adjustable options indicated for compatible models.
Design & operation
- High‑speed turbine cartridges/rotors engineered for long life and consistent performance.
- Multi‑spray water cooling (typically 4 sprays); some LED/LED‑ready variants offer adjustable water flow.
- Anti‑retraction / anti‑suction features to minimize backflow and infection risk.
Product families / variants
- Ultra‑Mini Head group (commonly HP1 / HP1B2 / HP1QD): compact head geometry for restricted access.
- Standard Head group (commonly HP2 / HP2B2 / HP2QD): balanced geometry for general restorative work.
- Surgical / HP45 family (HP45 / HP45B2 / HP45QD): surgical/implant variants with dedicated head angles and coupling options.
Usage notes
- Zero‑suction design reduces contamination risk and prolongs cartridge lifetime — suitable for routine restorative, prophylactic and many surgical procedures where anti‑retraction is required.
- Select the coupling type that matches the dental unit (QD or conventional) and confirm head geometry (Ultra‑mini, Standard, Surgical) for clinical access.
Specifications / Technical data
- Ultra‑Mini Head (example group — HP1 / HP1B2 / HP1QD): Power ~19 W; Head size: 9.2 × H 11.2 mm; Max speed: 380k–450k rpm; Water: 4 sprays; Head angle: 100°; Zero‑suction: Yes; Noise: ≤ 68 dB; Run‑out: ≤ 12 μm; Clamping force: ≥ 24 N; Body: stainless steel; Weight: ~34.5 g; Warranty: 12 months.
- Standard Head (example group — HP2 / HP2B2 / HP2QD): Power ~21 W; Head size: 11.2 × H 13.5 mm; Max speed: 350k–400k rpm; Water: 4 sprays; Head angle: 90°; Zero‑suction: Yes; Noise: ≤ 68 dB; Run‑out: ≤ 12 μm; Clamping force: ≥ 24 N; Body: stainless steel; Weight: ~44.3 g; Warranty: 12 months.
- Surgical Head / HP45 family (HP45 / HP45B2 / HP45QD): Power ~21 W; Head size typical: 11.2 × H 13.5 mm; Max speed: ~350k–400k rpm (varies); Water: 4 sprays (typical) or 3 jets on some coated variants; Head angles: e.g. 45° or other surgical angles; Zero‑suction: Yes; Noise: ≤ 68 dB; Run‑out: ≤ 12 μm; Clamping force: ≥ 24 N; Body materials: stainless steel (some variants: brass or titanium options); Weights: ~46–49 g depending on model; Warranty: 12 months.
- Clamping / chucking: DTL 3 Points Spring Chucking — retention increases with speed up to ~40 N for improved stability.
- Coupling compatibility: QD types (HP1QD/HP2QD/HP45QD), Q4Q / Q2Q / Q4Q‑W / Q2Q‑W, external Q4Q‑W, Midwest 4‑hole, Borden 2‑hole; LED/water‑adjustable and anti‑retraction options noted per variant.
