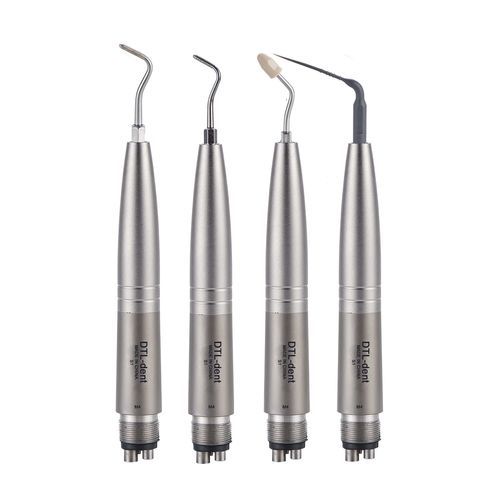

Dental handpiece SonicOne

for scalingfor dental restorationsfor endodontics

Product overview
DTL-dent SonicOne Air sonic handpiece. Designed for scaling, endodontic irrigation, preparation and placement of inlays. Provides gentle patient treatment and a range of interchangeable working tips for different clinical indications.

Specification (summary)

• Chucking: External Screw
• Frequency: 6000 Hz
• Operating mode: Orbital Revolution
• Body material: Brass
• Coating: Chrome
• Warranty: 6 months

Working tips — Scaler

• Models: GK1, GK2, GK3
• Material: Stainless Steel
• Application: Scaling — for thinning and removal of calculus and plaque above and at margins; supports prophylaxis and provides gentler treatment for patients

Working tips — Endo irrigation

• Models: PGK1 (21 mm), PGK2 (28 mm)
• Material: Polyamide
• Application: Endodontic irrigation — polyamide tips oscillate at high amplitude generating three-dimensional motion that induces cavitation and acoustic streaming for improved cleaning efficiency

Working tips — Preparation

• Models: GK20, GK21
• Material: Diamond coated
• Application: Preparation — allow precise bevel and margin preparation with reproducible results while preserving adjacent tooth structure

Working tips — Placement of inlays

• Model: SQK80
• Material: Polyether ether ketone (PEEK)
• Application: Inlay placement — used to seat restorations with manual pressure until firm resistance, final seating performed in a subsequent step

Notes

• Product name / series: SonicOne
• Intended clinical uses: scaling, endodontic irrigation, preparation and inlay placement

Technical specifications

• Product: SonicOne Air sonic handpiece
• Chucking: External Screw
• Frequency: 6000 Hz
• Operating mode: Orbital Revolution
• Body material: Brass
• Coating: Chrome
• Warranty: 6 months
• Scaler tips: GK1, GK2, GK3 — Stainless Steel
• Endo irrigation tips: PGK1 (21 mm), PGK2 (28 mm) — Polyamide
• Preparation tips: GK20, GK21 — Diamond coated
• Inlay placement tip: SQK80 — PEEK
