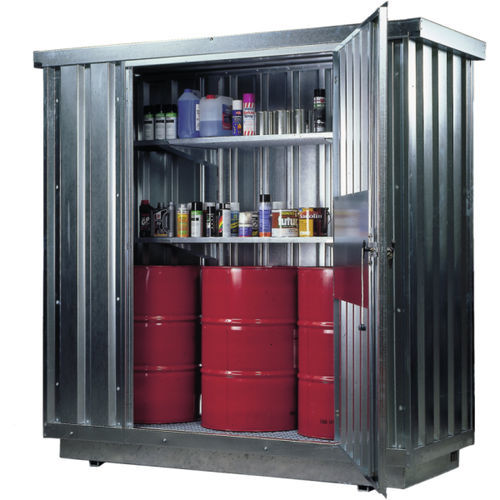

Storage cabinet 1.52.411
securityfor instrumentswith door

storage cabinet
storage cabinet
storage cabinet
storage cabinet
Add to favorites
Compare this product


Characteristics

Type
storage, security
Use
for instruments
Components
with door
Weight

370 kg
(815.7 lb)

Height

2,340 mm
(92.1 in)

Length

2,350 mm
(92.5 in)

Width

915 mm
(36 in)

Description

Field of Application: - Storage equipment and accessories Width: - 915 mm Depth: - 2350 mm Height: - 2340 mm Weight: - 370 kg GALVANISED VERSION: Dimension: 915 x 2350 x 2340 (LxWxH in mm) Capacity: 3000 l Approval for storage of water polluting liquids WGK 1 - 3, flammable liquids, F+, F outdoors or in building in accordance with the specific fire protection regulations. Wall and ceiling elements made from galvanised trapezoidal sections, floor sections made from sheet steel. 1 leaf, galvanised door, 1294 mm wide and 1996 mm high, the door is hung on the right, mounted on the longitudinal side. Single-point locking Mortise lock with door handles and security lock with 2 keys. The accessible roof is designed for 125 kg/m2 snow load. Drainage through inner-lying gutters. Bottom tray made from 3 mm thick, galvanised sheet steel, welded liquid-tight. Standing level made from galvanised, removable gratings, load 1000 kg/m2. Testing: General national technical approval Z-38.5-94 of the Deutsche Institut für Bautechnik (DIBt) Berlin
