Oil-free serial-compressor stations
with membrane dryers

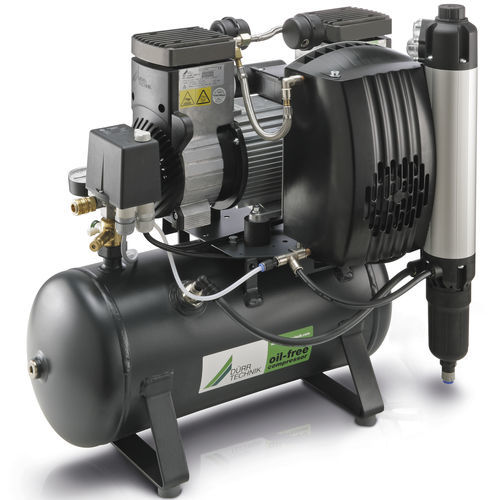

The standard station has an oil-free compressor, control gear, and quick coupling with hose nozzle. The compact design allows the cooler and the membrane dryer to be mounted on the top of the pressure receiver, which features the antibacterial internal coating. Further options such as a fine filter and an operational hours meter are available.
Technical date of the membrane dryers:
Pressure range (usable) 4 – 10 bar (60-145 psi)
Operating pressure 7 bar (100 psi)
Ambient temperature 5 – 40 °C (41 – 104 F)
Dew point reduction 35 Kelvin (-396 F)
Microfilter (built-in) 3 micron
Volume of vessel
U = 3 litres
W = 10 litres
T = 25 litres
H = 55 litres
P = 90 litres
In addition to the individual system solutions, Dürr Technik offers compressor stations in modular design. These
are con gured from various standard components exactly
according to your detailed requirements. Your advantage:
you can bene t from a short delivery time and an outstanding price/performance ratio.
Our 10-, 25-, 55- and 90-litre pressure receivers have an
internal anti-bacterial coating as standard.
If you need dry air for your application, membrane dryers
with different pressure dew points are available to you –
offering 100% continuous-running with economical purge
air consumption. A patented relief valve optimises the
Of course, the same high quality standards apply to all
modules as to our individual system solutions. Please feel
free to contact us.When selecting the modules, the operating conditions
and operation site play an important role.
