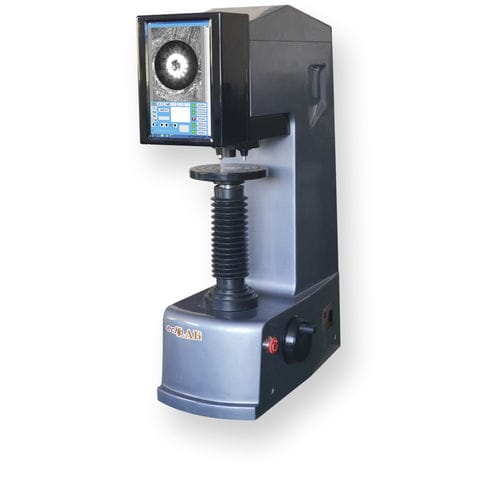

Hardness tester HTB 3000A

Touch screen control panel Main loads 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf Dwell time 0~95s Fully Automatic Digital Brinell Hardness Tester > Fully automatic three indenters digital Brinell hardness tester adopts strong rigidity and precise structure design casting, load test force controlled by sensors, allowing accuracy and stability. Test process controlled by CPU, automatic switching between the objective and the indenter. Switching system adopts mechanical and electronic double control in order to obtain precision set. Built-in panel computer for easy parameters settings and results, reduces the measuring error. After scale choice, the instrument will automatically detect and select the indenter and objective, the test table rises automatically and, after loading the test force, back to the focusing position, a clear image of the indentation will be shown on the display and the system will automatically start the measuring. > 10 test force levels, 13 Brinell hardness test scales, suitable for different kinds of metals. > Three indenters and two objectives, no need to change the indenters when testing different samples; with rigorous optical structure and high magnification clear indentation observation; > Automatic indenter and objective selection according to the test scale; > Automatic lifting test table adopts precise structure with high stability;
