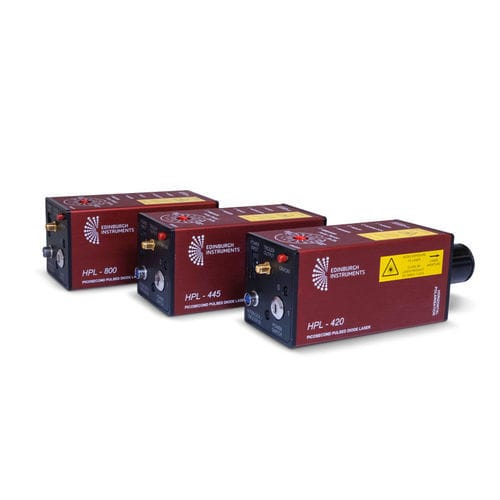

Excitation light source HPL series

lasercompact

Optimised for TCSPC Repetition rates up to 80 MHz Standard and high-power operation mode External trigger capability Spectrally purified output Compact plug-and-play design Product Description The HPL high repetition rate/high power picosecond pulsed diode lasers are a series of pulsed sources designed for Time-Correlated Single Photon Counting (TCSPC) measurements with repetition rates up to 80 MHz. When operating in standard pulse mode, HPL lasers provide pulses of 50 ns pulse. Trigger on rising edge. 0.0V < Low level < 0.5V, 2.5 V < High level < 5V Key Switch - Yes Beam Quality - 10% – 90% Knife Edge Method Beam diameter < 9.5 mm at HPL output aperture Beam diameter < 25 mm after 250 mm propagation
