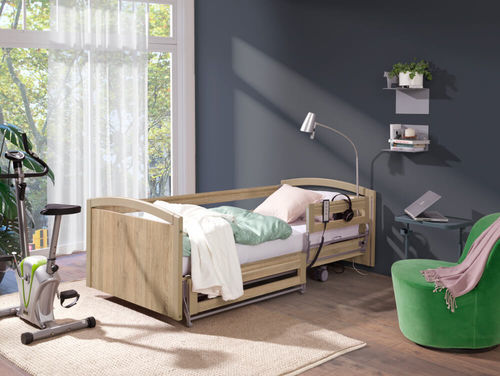

Medical bed PB 636

nursing homeelectricheight-adjustable

Overview
The PB 636 is a low‑height care bed designed for medical and long‑term care settings. The mattress platform can be lowered to 29 cm to reduce fall risk and support safer patient mobilisation. Height adjustment from 29 to 72 cm provides ergonomics for caregivers. The bed combines beech‑coloured wooden elements with silver powder‑coated metal for a neutral, clinical appearance. Delivered packaged on a pallet for straightforward assembly. The standard lying area is 90 × 200 cm with wooden sprung slats; a metal mesh lying surface is available as an option. All adjustments are operated via a splash‑proof handset with lockable functions. An optional help pole supports up to 80 kg and includes an inner core barrel for additional stability.

Product details

• Lowest mattress support platform level: 29 cm
• Decorative cover of the mattress support platform
• Electric lifting with modern actuator technology
• Splash‑proof handset with lockable functions
• Double‑brake castors (100 mm)
• Divided side rails available as an option

Options
Choice of overall length and mattress support material; selection of colours; divided side rails; optional metal mesh for the lying area; help pole (80 kg capacity).

Technical parameters
Safe workload: 175 kg
Maximum user weight: 140 kg
Mattress support height adjustment: 29–72 cm
Backrest adjustment: 0–70°
Lower leg rest adjustment: 0–20°
External dimensions (L × W): 207 × 106 cm
Clearance under the bed: approx. 16 cm
Total weight: 118.6 kg
Castors: 100 mm with brake

Standard colours

• Beech
• Sonoma oak

Non-standard colours

• C6 Acacia
• C8 Walnut
• Grande oak

Additional features / construction details
4‑section lying surface electrically adjustable via 2 independent motors. Foot section adjustment assisted by 2 ratchets. Telescopic side bars with plastic end caps minimize gaps and reduce entrapment risk; lowered telescopic side bars slide into each other and do not obstruct entry/exit even at the lowest bed position. Wooden side covers conceal the lying surface frame. Splash‑proof manual control with individual function lock.

Notes
Product photos are for illustrative purposes; actual appearance, color and texture may vary.

Model / Technical specifications

• Model: PB 636
• Lowest mattress support platform level: 29 cm
• Height adjustment (mattress support): 29–72 cm
• Backrest: 0–70°
• Lower leg rest: 0–20°
• External dimensions (L × W): 207 × 106 cm
• Maximum user weight: 140 kg
• Safe workload: 175 kg
• Total weight: 118.6 kg
• Castors: 100 mm with brake
• Lying area: 90 × 200 cm (wooden sprung slats)
• Control: splash‑proof handset with lockable functions
• Optional: divided side rails, metal mesh lying surface, help pole (80 kg capacity)
