Electronic dry bath 352

automaticheatingbenchtop

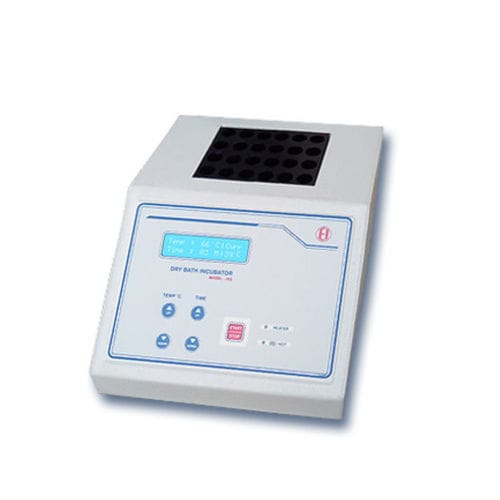

Dry Bath Incubator model 352 is a microcontroller based instrument designed to control the heating of thermally conducting block. The block is fabricated to fit in 24 test tubes of 12mm dia. The test tubes contact the walls of the block to provide constant precise temperatures to the test tubes contents. The output of the heater is controlled by means of a precision temperature sensor and highly sensitive automatic electronic temperature controller. It is widely used in samples cultivation, preservation and reaction, DNA amplification, pre- degeneration of electrophoresis and solidification. It is used in the clinical, pharmaceutical, chemical, food safety, environment and quality inspection etc 16×2 line alphanumeric LCD display with backlit PID(Software Controlled) for temperature Block is fabricated to fit in 24 test tubes of 12mm dia. Supply of 230V, 50Hz, AC is available Specifications Block Size - 24 holes for 12 mm test tubes Temperature Range - +5°C Above ambient up to 100°C Temperature Accuracy - ± 2°C Temperature Sensor - LM 35 (Semi Conductor) Maximum Heating Power - 125 W Temperature Controller - PID(Software Controlled) Timer - 1-99 Minutes Display - 16×2 Line Alphanumeric LCD Display Power Supply - 230V±10% AC, 50Hz Dimensions - 190 x 220 x 125mm Weight - 2.70 Kgs. (Approx.)
