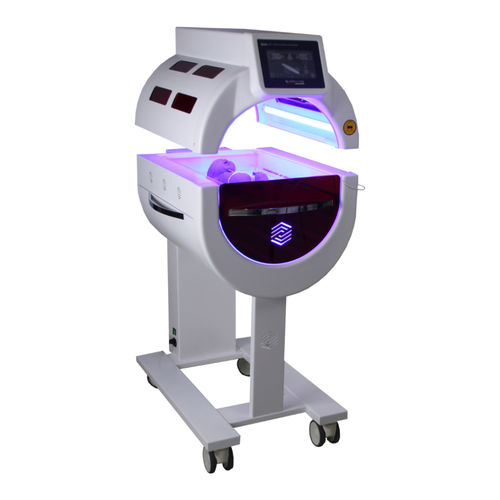

Infant phototherapy lamp M 304 Adjustable Head

trolley-mountedblue lightLED

Product overview
Elektro-mag M 304 intensive phototherapy unit is intended for the treatment of neonatal jaundice. The device features a 360°-adjustable head that optimizes phototherapy exposure and an option for fanless operation to provide quieter, naturally ventilated care. Blue fluorescent LED lamps and a 7" colored TFT touch screen enable controlled, documented treatment sessions with integrated timers, temperature monitoring and alarms.

Key features

• 360°-adjustable head: hemispherical lighting section opens upward at the infant area to allow natural ventilation and quieter operation
• Phototherapy light source: blue fluorescent LED lamp
• Control interface: 7" colored TFT touch screen
• Multilingual menu: Turkish, English, French, Arabic (Russian option also noted)
• Digital timer with audio warning and end-of-period alarm
• Skin and air temperature control with lower/upper thresholds and temperature-regulating thermostat
• Separately operable lower and upper light source sections
• Lamp life: 70,000 hours with life-cycle counter
• Baby mattress: sliding tunnel extraction with alarm
• Selectable operating intensities available
• Fanless ventilation option in adjustable-head configuration for reduced noise
• Robust sheet-steel construction with stove-enamel finish
• Mobility: 4 casters (2 with brakes)

Technical specifications

• Phototherapy light source: Blue fluorescent LED lamp
• Lamp life: 70,000 hours
• Control board: 7" colored TFT touch screen display
• Available languages: Turkish, English, French, Arabic
• Timer: Digital with audio alarm
• Light wavelength: 460 nm
• Operating intensity options: 9625, 9650, 9675, 96100
• Maximum light intensity (at 40 ± 1 cm): 120 µW/cm²/nm (±10%)
• Minimum light intensity (at 40 ± 1 cm): 30 µW/cm²/nm (±10%)
• Power rating: 150 W; Fuse: 2 Amp; Power supply: AC 190–240 V / 50–60 Hz
• Temperature range: 32°C–38°C
• Dimensions (W x L x H): 56 x 145 x 75 cm
• Net weight: 35 kg; Gross weight: 45 kg
• Netting mattress (W x L): 40 x 65 cm

Product benefits / advantages

• Delivers uniform 360° phototherapy exposure to treat neonatal jaundice effectively
• Accurate monitoring and control via a color touch-screen interface
• Multiple safety features: digital timer, audio alarms and temperature thresholds for neonatal protection
• Fanless adjustable-head option provides natural ventilation and reduced noise for a calmer environment
• Long-lasting LED lamp technology for sustained performance and reduced maintenance

Detailed technical data

• Phototherapy light source: Blue fluorescent LED lamp
• Lamp life: 70,000 hours
• Control: 7" colored TFT touch screen display
• Wavelength: 460 nm
• Intensity (max/min): 120 µW/cm²/nm (±10%) / 30 µW/cm²/nm (±10%) at 40 ± 1 cm
• Operating intensity selections: 9625, 9650, 9675, 96100
• Power: 150 W; Fuse: 2 Amp; Power supply: AC 190–240 V / 50–60 Hz
• Temperature range and control: 32°C–38°C; thermostat and threshold settings available
• Dimensions: 56 x 145 x 75 cm; Net weight 35 kg; Gross weight 45 kg
• Mattress size: 40 x 65 cm; sliding mattress extraction with alarm
• Casters: 4 (2 with brakes)
