Magnetic laboratory mixer M 222

digitalfor general purposesbenchtop

Overview

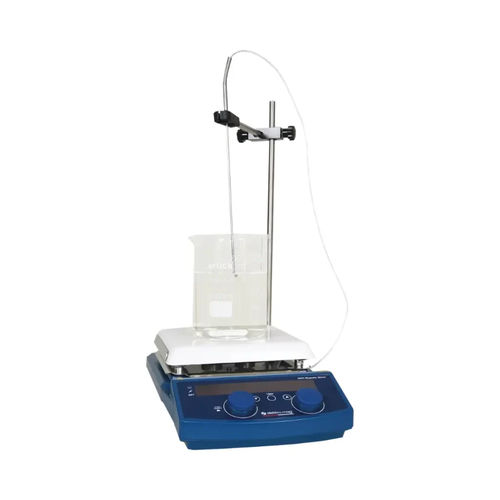

Elektro-mag M 222 magnetic stirrer is a laboratory-grade unit combining a brushless DC motor with a ceramic-coated stainless steel heating plate. It offers precise speed control from 50 to 1500 rpm, temperature control up to 510°C and an LED display for clear monitoring. An external PT1000 temperature sensor supports accurate regulation for sensitive procedures.

Specification
The device provides a single stirring position, time programming (1 min to 59 h 59 min), and control accuracy of ±1°C. The robust brushless motor ensures smooth stirring across a wide range of liquid viscosities. Power supply 190–240 V / 50–60 Hz, total power 1050 W.

Advantages of ceramic-coated heating plate
The ceramic coating delivers even heat distribution, reduces hotspots and increases chemical and corrosion resistance compared with plain stainless steel. This improves sample integrity and simplifies cleaning in lab environments where combined heating and stirring are required.

Technical specifications

• Mixing speed (cycle/min.): 50 – 1500 rpm
• Speed display: LED
• Heating temperature range: 50 – 510°C
• Heating tray material: Stainless steel with ceramic coating
• Time range: 1 Min – 59 hours 59 minutes
• Max. stirring quantity (H2O): 20 liters
• Max. magnetic bar (LxO): 40 x 8 mm
• Stirring positions: 1
• Control accuracy: ± 1°C
• External temperature sensor: PT1000
• Dimension of working plate: 185 x 185 mm
• Overall dimensions (w x h x d): 350 x 220 x 100 mm
• Motor type: Brushless DC motor
• Voltage: 190-240 V / 50-60 Hz
• Power: 1050 W
• Net weight: 4.5 kg
• Gross weight: 5 kg
