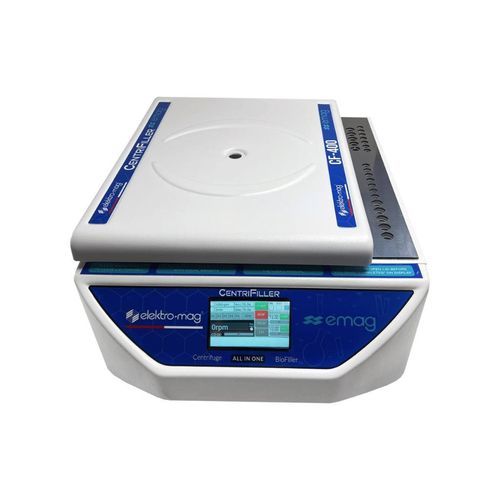

Laboratory centrifuge CF 400

clinicalindustrialfor research

Product overview
The CF 400 full swing-out rotor centrifuge is designed for precise sample separation in clinical, research and industrial laboratory workflows. It integrates a full swing-out rotor, a maintenance-free brushless motor and programmable cycles to support reproducible processing of blood, plasma gel and cell samples.

Key Features

• User-Friendly Interface: 4.3” TFT touch screen for intuitive control of speed, RCF and time.
• High Performance: Speed up to 4500 rpm with maximum RCF up to 3629 x g depending on rotor and tube configuration.
• Advanced Safety: Lid safety switch and lid lock for secure operation during runs.
• Plasma Gel Support: Heating and cooling functions to accommodate different autologous cell filling volumes.
• Programmability: Five programmable settings for reproducible protocols.
• Robust Construction: Steel rotor, acetal resin tube sockets, sheet-steel and aluminium chamber with durable finishes and ABS components.

Applications
Suitable for clinical diagnostics, biobanking, research and industrial labs for plasma gel preparation, cell separation and general centrifugation tasks requiring reproducibility and safety.

Technical specifications (excerpt)
Capacity / Standard rotor: 8 x 15 mL
Optional rotors: 4 x 50 mL
Rotor type: Full swing-out
Maximum speed: 4500 rpm
Maximum RCF: 8 x 15 mL / 3175 x g; 4 x 50 mL / 3629 x g
Speed setting increment: 10 rpm
Speed range: 500–4500 rpm
Acceleration & deceleration time: 20–150 s (1 s steps)
Timer: starts when set speed is achieved
Timer range: 1–99 min (1 min steps)
Continuous running mode: available
RCF value entry: available
Short period running: pulse function enabled
Number of programs: 5
Plasma gel heating: supports 3 autologous cell filling volumes
Plasma gel cooling: available
Fuse: 6 A
Power rating: 350 W
Safety measures: lid safety switch, lid lock
External speed reading: available
Rotor material: steel
Tube socket material: acetal resin
Casing material: sheet steel with stoved enamel paint + ABS
Chamber material: sheet aluminium with stoved enamel paint
Motor type: maintenance-free brushless motor
Power supply: AC 190–240 V / 50–60 Hz
Overall dimensions (W x H x D): 44 x 56 x 25.5 cm
Net weight: 28 kg
Gross weight: 30 kg
