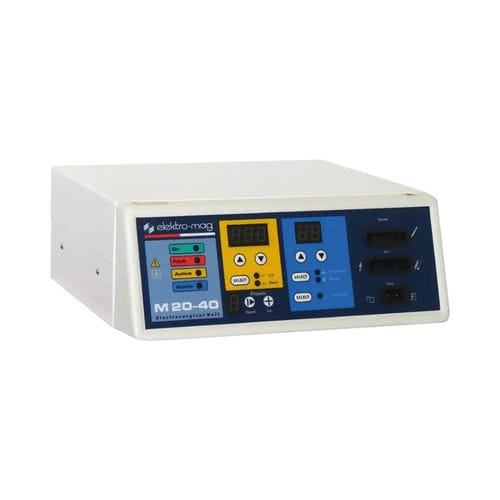

Monopolar cutting electrosurgical unit M 20 - 40

bipolar cuttingcoagulationmonopolar coagulation

Product overview
Elektro-mag M 20 6 40 electrosurgical unit (100 W cutting power) is a compact surgical generator designed for general electrosurgical procedures. It supports monopolar and bipolar modes, multiple programmable settings and operator-selectable activation via a button-controlled pencil or foot switch.

Category information
Electrosurgical units are medical devices that deliver high-frequency electrical energy for tissue cutting, coagulation and hemostasis. They are used across surgical specialties to achieve precise tissue effect while minimising thermal spread to adjacent structures.

Technical specification

• Operating modes: Monopolar and bipolar (cut, coagulation, mixed, spray)
• Maximum cutting power: 100 W
• Maximum coagulation power: 40 W
• Spray coagulation power: 40 W
• Bipolar coagulation power: 20 W
• Number of programmable programs: 9
• Hand manipulator electrodes supplied: 8 pcs
• Power activation: Button-controlled pencil or optional foot switch
• Cutting/coagulation impedance: 300 Ω
• Spray coagulation impedance: 1000 Ω
• Power rating: 120 W
• Fuse: 2 A
• Power supply: AC 190–240 V, 50–60 Hz
• Casing: Sheet steel with stoved enamel finish and plastic parts
• Overall dimensions (W × D × H): 30 × 12 × 24 cm
• Net weight: 7.5 kg; Gross weight: 8 kg

What is the Electrosurgical Unit (Electrocautery)?
An electrosurgical unit delivers high-frequency electrical energy through an electrode to cut, coagulate or desiccate tissue. The focused energy at the electrode tip produces controlled thermal effects for precise dissection and haemostasis, reducing bleeding and preserving surrounding nerves and muscles.

Advantages of the Elektro-mag M 20 6 40

• Dual monopolar and bipolar operation for a wide range of procedures.
• 100 W cutting power and up to 40 W coagulation to cover common surgical needs.
• Nine programmable settings for procedure-specific customization.
• Lightweight, portable format with robust sheet-steel and plastic casing.
• Operator-friendly activation via button-controlled pencil, with optional foot switch for hands-free use.

Technical features / Specifications

• Cutting mode: Available
• Mixed cutting-coagulation mode: Available
• Coagulation mode: Available
• Bipolar coagulation mode: Available
• Maximum cutting power: 100 W
• Maximum coagulation power: 40 W
• Spray coagulation power: 40 W
• Bipolar coagulation power: 20 W
• Power activation: Button-controlled pencil or foot switch
• Cutting/coagulation impedance: 300 Ω
• Spray coagulation impedance: 1000 Ω
• Hand manipulator electrode: 8 pcs
• Number of programs: 9
• Power rating: 120 W
• Fuse: 2 A
• Casing material: Sheet steel finished in stoved enamel paint + plastic
• Power supply: AC 190–240 V / 50–60 Hz
• Overall dimensions (W × D × H): 30 × 12 × 24 cm
• Net weight: 7.5 kg
• Gross weight: 8 kg
