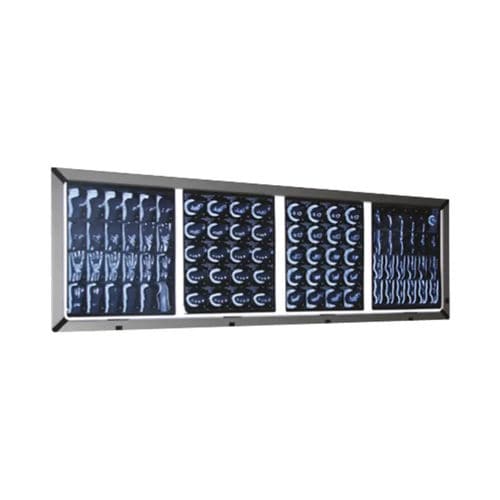

4-screen X-ray film viewer PEGA IV

LED

Product Overview
The PEGA IV Negatoscope is designed for accurate viewing of X‑ray films in medical environments. Its ultra‑thin profile (2.4 cm) and energy‑efficient LED illumination deliver uniform light across a large 1525 mm viewing width, supporting detailed radiological analysis and long operational service life.

Technical Specifications

• Model: PEGA IV
• Thickness (depth): 2.4 cm
• Dimensions (h x w): 520 x 1620 mm
• Screen Size (h x w): 430 x 1525 mm
• Power Consumption: 140 W
• Expected Lamp Life: 100,000 hours
• Net Weight: 12.3 kg
• Illumination: Energy‑efficient LED technology
• Light distribution: Homogeneous across the screen
• Designed for: Viewing X‑Ray films and detailed medical imaging analysis

Product Category
Negatoscopes (X‑ray film viewers) are standard equipment in radiology departments and imaging centres. They provide even backlighting for film interpretation, reduce visual artefacts, and are optimised for low energy consumption and extended lamp longevity to support continuous clinical use.

FAQ

• Q: What makes the PEGA IV Negatoscope stand out from other models? A: The PEGA IV features an ultra‑slim 2.4 cm depth and homogeneous LED illumination across its 1525 mm screen width, enabling precise analysis of large radiographic films with reduced energy consumption.

Product Features

• Ultra‑thin 2.4 cm profile for space‑efficient installation
• Wide uniform viewing area (1525 mm) suitable for multi‑film layouts
• Long lamp life (~100,000 hours) and low power draw (140 W)
• Energy‑efficient LED system for stable, even illumination
