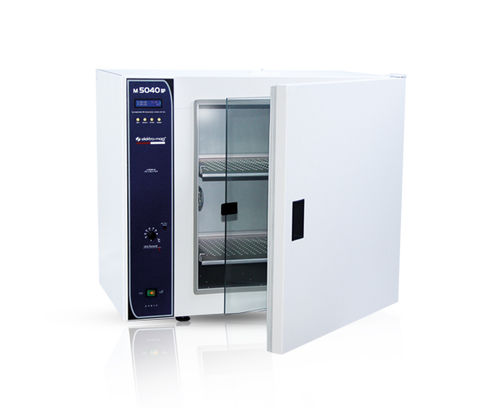

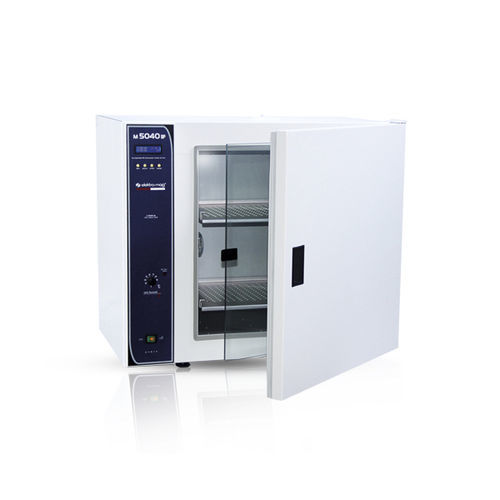

Natural convection laboratory incubator M 5040 BP

for microbiologyfor bacteriologybacteriological

Product overview
Elektro-mag M 5040 BP is a bacteriological incubator designed for laboratory microbial culture and incubation tasks. It provides precise temperature control from ambient +5°C up to 100°C with homogeneous heat distribution, suitable for routine and controlled microbial studies.

Key features

• Anodized aluminium internal chamber with 100 L working volume
• PID digital temperature control with linear temperature sensor for stable setpoint maintenance
• SSR load switching and 1°C adjustment sensitivity with ±0.1°C operating accuracy
• Natural air circulation for uniform temperature; no circulation fan
• Ergonomic interface, fast heating for small loads and energy-efficient operation
• Two perforated stainless-steel shelves included

Technical Specifications (table)
Operating temperature range: Ambient temperature +5°C to 100°C
Capacity (internal volume): 100 L
Thermoelement type: Linear temperature sensor
Temperature control: PID digital control
Load switching element: SSR
Thermostat adjustment sensitivity: 1°C
Thermostat operating accuracy: ± 0.1°C
Thermometer reading sensitivity: 0.1°C
Internal temperature variations: ± 1°C
Circulation: Natural air circulation ensuring homogeneous heat distribution
Circulation fan: Not available
Postpone / operation time: 1 min – 99 hours 59 min
Timing start: When set temperature is reached
Safety system: Liquid expansion safety thermostat (30–110°C)
External cabinet material: Electrostatic oven-painted steel
Internal chamber material: Aluminium
Insulation material: Rock wool
Shelf: Perforated stainless steel (2 pieces)
Fuse: 6 Amps
Total power: 900W
Power supply: AC 190-240 V / 50-60 Hz
Internal dimensions (W x D x H): 50 x 40 x 50 cm
External dimensions (W x D x H): 79 x 53 x 69 cm
Net weight: 53 kg
Packaged weight: 59 kg

Application
Suitable for bacteriological studies and routine laboratory incubation where accurate temperature control and uniform heating are required, including culture growth, stability tests and sample conditioning.

Characteristics / Technical specifications

• Operating Temperature Range: Ambient temperature +5°C to 100°C
• Capacity (Internal Volume): 100 L
• Thermoelement Type: Linear Temperature Sensor
• Temperature Control: PID Digital Control
• Load Switching Element: SSR
• Thermostat Adjustment Sensitivity: 1°C
• Thermostat Operating Accuracy: ± 0.1°C
• Thermometer Reading Sensitivity: 0.1°C
• Internal Temperature Variations: ± 1°C
• Circulation: Natural air circulation ensuring homogeneous heat distribution
• Circulation Fan: Not available
• Postpone / Operation Time: 1 min – 99 hours 59 min
• Timing Start: When set temperature is reached
• Safety System: Liquid expansion safety thermostat (30-110°C)
• External Cabinet Material: Electrostatic oven-painted steel
• Internal Chamber Material: Aluminium
• Insulation Material: Rock Wool
• Shelf: Perforated stainless steel (2 pieces)
• Fuse: 6 Amps
• Total Power: 900W
• Power Supply: AC 190-240 V / 50-60 Hz
• Internal Dimensions (W x D x H): 50 x 40 x 50 cm
• External Dimensions (W x D x H): 79 x 53 x 69 cm
• Net Weight: 53 kg
• Packaged Weight: 59 kg
