Medical sterilizer M 6040 P

laboratoryfor healthcare facilitiesdry heat

Product overview

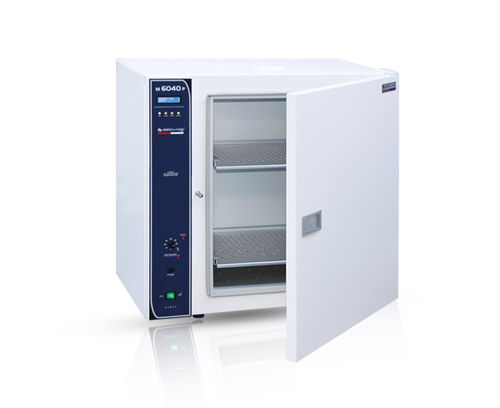

Elektro-mag M 6040 P hot air sterilizer is designed for dry-heat sterilization with an anodized aluminium chamber of 120 L and precise PID digital control. Operating range: ambient +5°C to 250°C. The unit uses a J-type thermoelement, SSR load switching and a safety thermostat with liquid expansion (50–300°C). Chamber insulation is rock wool and two perforated anodized aluminium shelves are included. Process time is programmable from 1 minute to 99 hours 59 minutes; the sterilizer starts the cycle automatically once the preset temperature is reached.

Technical specifications

• Working temperature range: Ambient +5°C to 250°C
• Capacity (chamber volume): 120 L
• Type of thermoelement: J type
• Temperature control: PID digital control
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1°C
• Thermostat working accuracy: ±1°C
• Thermometer display increments: 1°C
• Chamber temperature accuracy: ±2°C
• Process time (delay / run): 1 min – 99 h 59 min
• Safety measure: Safety thermostat with liquid expansion (50–300°C)
• Casing material: Sheet steel with stoved enamel finish
• Chamber material: Anodized aluminium
• Insulation material: Rock wool
• Shelves: 2 perforated anodized aluminium
• Power rating: 1500 W
• Fuse: 10 A
• Power supply: AC 190–240 V / 50–60 Hz
• Chamber dimensions (W × D × H): 50 × 40 × 60 cm
• Overall dimensions (W × D × H): 79 × 53 × 79 cm
• Net weight: 53 kg
• Gross weight: 60 kg

How does the hot air sterilizer ensure effective sterilization?
The unit employs dry heat and precise temperature control to create a stable high-temperature environment that eliminates microorganisms on heat-stable instruments and materials without using moisture.

Advantages

• Anodized aluminium chamber provides good thermal conductivity and corrosion resistance
• PID control together with SSR switching ensures stable temperature regulation
• 120 L capacity offers a compact solution for laboratories and small medical facilities

Control and design notes
The PID control unit allows accurate setpoint management through an intuitive menu with functional options. Chamber design and insulation support homogeneous temperature distribution and repeatable results for routine and research applications.
