Medical centrifuge M 19 P II

laboratoryfor hematologyclinical

Overview

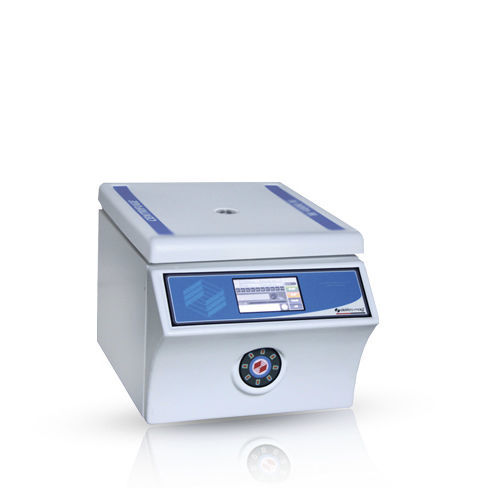

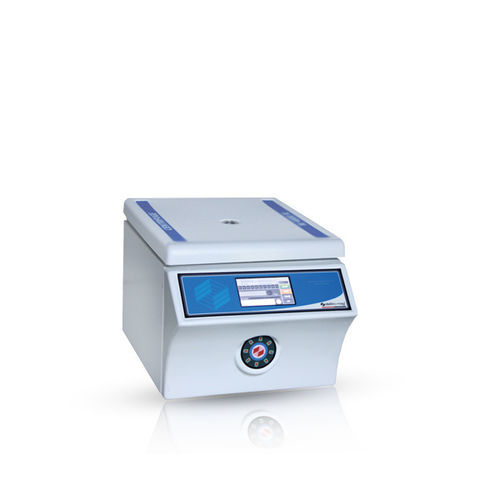

The M 19 P II Haematocrit Centrifuge is a laboratory centrifuge designed for rapid separation and haematocrit (microhematocrit) determination. It achieves a maximum speed of 12000 rpm and a maximum RCF of 13608 x g. The unit is equipped with a 4.3” TFT touch screen, a maintenance-free brushless motor, a lid safety switch and lid lock, and allows setting of speed, RCF, time and acceleration/deceleration. It accepts up to 24 capillary tubes (Ø2 x 75 mm) and provides 10 programmable programs. Suitable for medical, research and diagnostic laboratories.

Technical table
Capacity (Capillary Tubes): 24 pcs x (Ø2 x 75 mm)
Timer: Starts when set speed is achieved
Timer Range: 1-99 minutes (1-minute steps)
Max. Speed: 12000 rpm
Max. RCF: 13608 x g
RCF Input Capability: Available
Speed Setting Increment: 10 rpm
Speed Setting Range: 1000 – 12000 rpm
Acceleration & Deceleration: 20-150 sec (1-sec steps)
Safety Measures: Lid safety switch
Lid Lock: Available
External Speed Reading: Available
Short Working Periods: With pulse button
Number of Programs: 10
Fuse: 3 Amps
Motor Type: Maintenance-free, brushless motor
Power Rating: 350 W
Reading Scale Capacity: 0-100%
Reading Scale Measurements: 45-70 mm
Tube Holding Disc Material: Acetal resin
Tube Holding Disc Cover: Stainless steel
Casing Material: Sheet steel, stoved enamel paint + ABS
Chamber Material: Sheet aluminum, stoved enamel paint
Power Source: AC 190-240 V / 50-60 Hz
Dimensions (W x D x H): 33 x 30 x 45 cm
Net Weight: 16 kg
Gross Weight: 18 kg

Features / Technical specifications

• Model: M 19 P II
• Application: Haematocrit (microhematocrit) determination and blood component separation
• Maximum speed: 12000 rpm
• Maximum RCF: 13608 x g
• Capacity: 24 capillary tubes (Ø2 x 75 mm)
• Timer: starts when set speed is achieved; range 1-99 minutes (1-minute steps)
• Speed setting range: 1000–12000 rpm, increment 10 rpm
• Acceleration/deceleration: adjustable 20–150 sec (1-sec steps)
• Programs: 10 programmable settings
• Short working (pulse) function: pulse button for short periods
• Safety: lid safety switch and lid lock
• External speed reading: available
• Motor: maintenance-free brushless motor
• Power rating: 350 W; Power source: AC 190–240 V / 50–60 Hz
• Fuse: 3 Amps
• Reading scale capacity: 0–100% (measurements 45–70 mm)
• Tube holding disc: acetal resin with stainless steel cover
• Casing/chamber: sheet steel with stoved enamel paint + ABS; chamber sheet aluminum with stoved enamel paint
• Dimensions: 33 x 30 x 45 cm (W x D x H)
• Net weight: 16 kg; Gross weight: 18 kg
