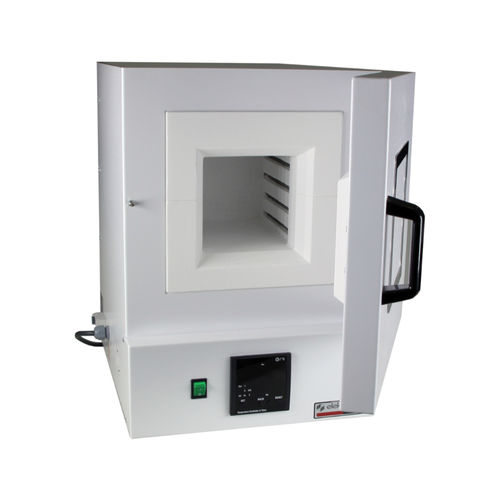

Laboratory furnace M 1914

annealingthermalmelting

Product summary
M 1914 Laboratory Furnace is engineered for high-temperature laboratory and industrial processes. It provides a working temperature range of 250°C to 1200°C with continuous operation capability up to 1150°C. The unit features PID digital control and SSR load switching for stable temperature regulation, Khantal A1 heating elements and ceramic wool insulation. Compact chamber (2 L) and safety cover switch make it suitable for material testing, sintering and heat-treatment tasks where precise, repeatable heating cycles are required.

Technical table

• Temperature working limits — 250°C to 1200°C
• Chamber volume — 2 liters
• Continuous working temperature — 1150°C
• Type of thermoelement — Ni-Cr Ni
• Temperature control — PID Digital
• Load switching element — SSR (Solid State Relay)
• Thermostat setting increment — 1°C steps
• Chamber temperature accuracy — ± 10°C
• Safety measure — Cover safety switch
• Insulation material — Ceramic wool + ceramic plate
• Heater type — Khantal A1
• Power rating — 3000W
• Chamber dimensions (W x H x D) — 11.2 x 8 x 20 cm
• Overall dimensions (W x H x D) — 35 x 50 x 56 cm
• Net weight — 30 kg
• Gross weight — 36 kg

Category Description: Laboratory Furnaces
Laboratory furnaces are designed for controlled high-temperature operations such as material testing, sintering, ceramic firing and heat treatment. They deliver repeatable temperature profiles and tight control required by R&D labs, QA departments and production lines working with metals, ceramics, composites and advanced materials.

Category FAQ

• What is the maximum temperature a laboratory furnace can reach? Most laboratory furnaces, including the M 1914, can reach up to 1200°C.
• What safety measures are in place for laboratory furnaces? Common safety features include cover safety switches and temperature limit controls to prevent overheating.
• How do I maintain a laboratory furnace? Regularly inspect insulation and heating elements, keep the chamber clean from debris and perform periodic calibration of temperature control systems.
• What industries typically use laboratory furnaces? Typical users include metallurgy, ceramics, materials science, electronics and pharmaceuticals.

Technical specifications

• Temperature working limits: 250°C to 1200°C
• Chamber volume: 2 liters
• Continuous working temperature: 1150°C
• Type of thermoelement: Ni-Cr Ni
• Temperature control: PID Digital
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increment: 1°C steps
• Chamber temperature accuracy: ± 10°C
• Safety measure: Cover safety switch
• Insulation material: Ceramic wool + ceramic plate
• Heater type: Khantal A1
• Power rating: 3000W
• Chamber dimensions (W x H x D): 11.2 x 8 x 20 cm
• Overall dimensions (W x H x D): 35 x 50 x 56 cm
• Net weight: 30 kg
• Gross weight: 36 kg
