Heating water bath M 2535

thermostaticmicroprocessor-controlledbenchtop

Product overview

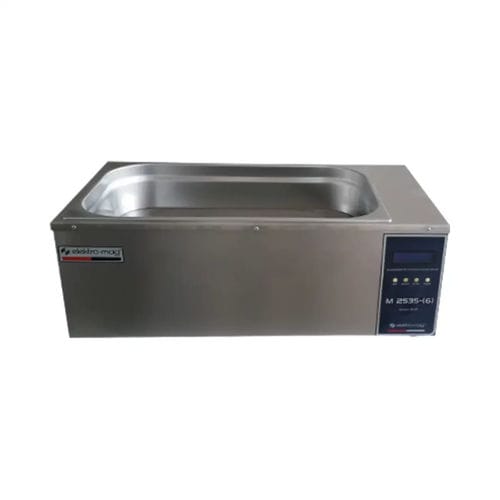

M 2535 Water/Steam Bath is designed for precise temperature control in laboratory environments. Stainless steel casing and tank provide chemical compatibility and heat resistance. Temperature range 30°C to 110°C is regulated by PID digital control with an NTC sensor and SSR switching. The unit includes a digital display, adjustable timer (1 min–59 h 59 min) and a 21 L capacity suitable for temperature-sensitive processes. Power rating: 1200 W.

Key features

• Temperature range: 30°C to 110°C
• PID digital temperature control
• NTC thermoelement
• SSR load switching element
• Digital display for monitoring and adjustment
• Capacity: 21 L (stainless steel tank)
• Power rating: 1200 W

Technical data

• Temperature working range — 30°C to 110°C
• Capacity (total volume) — 21 L
• Temperature control — PID digital control
• Type of thermoelement — NTC
• Load switching element — SSR
• Postpone / Process time — 1 min – 59 hours 59 min
• Timing begins — When set temperature is reached
• Thermostat setting increments — 0.1°C steps
• Thermostat working accuracy — ±0.1°C
• Temperature accuracy — ±0.1°C
• Power rating — 1200 W
• Fuse — 6 A
• Casing material — Stainless steel
• Tank material — Stainless steel
• Power supply — AC 190–240 V / 50–60 Hz
• Tank dimensions (w × h × d) — 35 × 25 × 17 cm
• Overall dimensions (w × h × d) — 58 × 30 × 39 cm
• Net weight — 14 kg
• Gross weight — 15 kg
