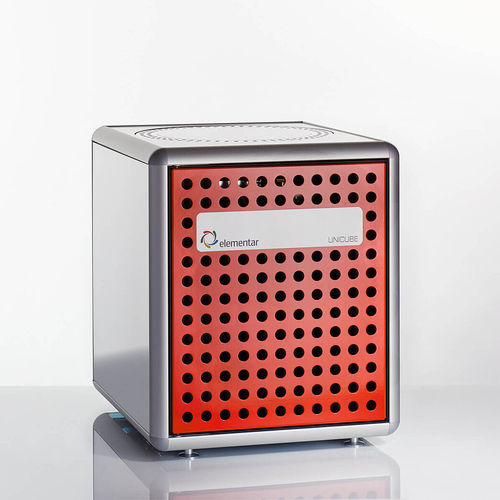

Carbon analyzer UNICUBE® trace

nitrogenorganic elementallaboratory

Experience matrix-independent, low-level nitrogen and carbon concentration measurements in solids and liquids with the UNICUBE trace. This elemental analyzer utilizes safe, user- and eco-friendly high-temperature combustion according to Dumas. It offers fast (5 min.), highly sensitive carbon and nitrogen analysis at a detection limit of 10 µg/g or 10 ppm. The UNICUBE trace is optimized for unattended, high-throughput analysis and stands for highest sample flexibility in trace carbon and nitrogen analysis. Highlights of the UNICUBE trace Precise trace analysis of carbon and nitrogen made possible by a highly sensitive detector and high upper sample size limits Reliable, matrix-independent results thanks to blank-free sample introduction and jet-injection of oxygen High sample throughput for up to 300 analyses per day due to fast analysis (5 min.) and easy maintenance Great sample flexibility for a wide range of sample weights for both solid and liquid samples Precise trace carbon and nitrogen analysis thanks to a highly sensitive detector Features Precise trace carbon and nitrogen analysis thanks to a highly sensitive detector The UNICUBE trace offers nitrogen and carbon determination by high-temperature combustion according to Dumas via a thermal conductivity detector (TCD). This TCD has been tuned for highest sensitivity, resulting in an analyzer that can quantify trace carbon and nitrogen with a detection limit of 10 µg/g or 10 ppm for unrivaled sensitivity. High sample throughput thanks to fast analysis and easy maintenance The UNICUBE trace offers fast carbon and nitrogen determination at trace level in five minutes.
