For our surgical lights of the EMALED 500 and EMALED 560 series, we additionally offer video systems with medical screens.
With the camera integrated centrally in the luminaire body, the operation area is always on the camera display. The camera is set by means of a remote control.
The video signal of the camera is transmitted by means of a Wi-Fi system, in HD quality, to a video recording system, a monitor (in the surgical area) or a larger screen outside of the operation room, e.g. for training purposes.

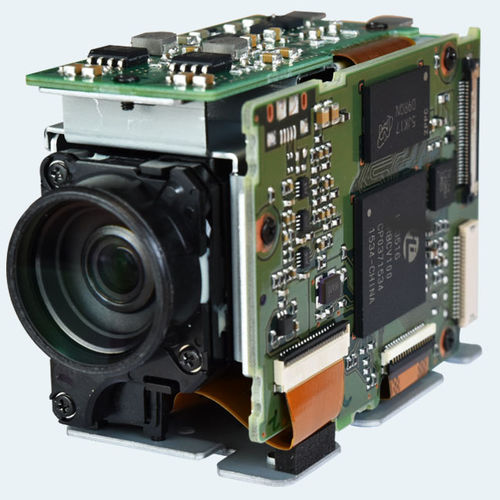

Full-HD camera (V)
The central positioning of the camera in the light head ensures distortion-free recordings of the procedure and ensures the best possible film quality.
Image sensor 1/3-type CMOS (Progressive Scan)
Effective number of pixels Approx. 4,080,000 pixels
AE (Auto exposure mode) Auto, Manual, Priority mode (shutter/iris)
Lens 10x optical zoom f=3.3 mm (wide) to
33.0 mm (tele) F1.8 to F3.4
Zoom movement speed 1.4 sec
Focusing system Auto, Manual, One push, AF sensitivity
