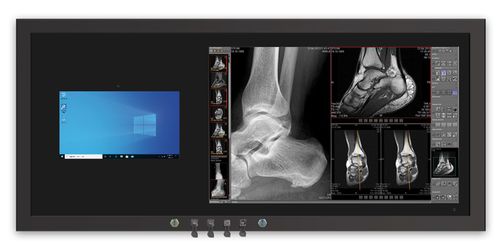

MBT-1000.55i.23 Digital O.R. Main features:
- - Openable glass lid
- - Open frame (all components installed on the lid)
- - In-wall installation
- - Active cooling
- - Customize I/O ports*
a) - PC side (left):
- - 24” FHD monitor PCAP touch
- - Inputs DVI {HDMI 1.4. comp} (as a default for PC)/ VGA / S-Video
- - Outputs DVI
- - 250 nits
- - Integrated FHD web-camera (USB)
b) - Workstation (right)
- - 55” 4K monitor with digital light box feature
- - DICOM Part 14 support (preinstalled DICOM curves for CT,DSI, DSA)
- - Support 4 inputs simultaneously (PIP/PBP2*WIN/PBP*3WIN/PBP*4WIN)
- - Inputs: DPx1 (4K,60Hz) +HDMI x 3 (4K, 30Hz)
- - 3G-SDI loop (instead of one HDMI)*
c) Video management:*
- MBT-0701 Fanless Medical workstation PC (Windows 10 IoT/Intel Atom CPU/16GB RAM/1TB SSD/)
- Video inputs: 4x HDMI (4K 60HZ)
- Video outputs: 2x HDMI + HDBT (RJ45)
- Recording in FHD,60Hz
- Streaming
- 8 x trigger (programmable I/O)
- USB 3.0 x 2 / USB 2.0 x 3 / USB 2.0 Isolated 4KV x 1
- LAN x 2 (1 x 4KV isolated)
- WiFi/Bluetooth *
- UART x 1 (RX, TX only)
- Video management software (PiP, PbP presets, Streaming, Recording (FHD, 60 Hz),
*- extra options
