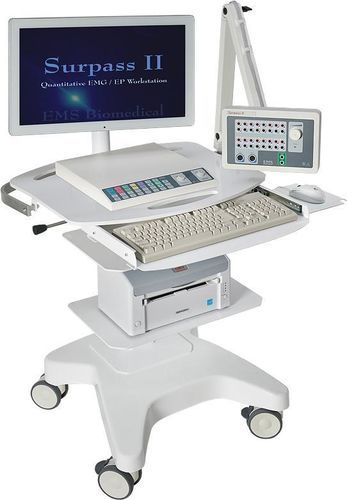

24-channel electromyograph SURPASS II

on casterswith neurostimulationcomputer-based

Features

• High-speed bipolar amplifier, upgradeable up to 24 channels
• Switching option to combine input channels to a common reference
• USB 2.0 interface to eliminate analog noise interference
• Available in desktop and portable configurations
• Microsoft Windows OS with MS Access patient database and programmable report generator
• Flexible system configuration and easy upgrade path
• All raw data can be stored on hard disk for later analysis
• Full suite of software modules for clinical EMG, NCS, EP and ERP examinations
• Multimodality stimulator capable of combining different stimuli for AEP, SEP, VEP and ERP
• Display up to 99 waveforms in cascade or split view; Roll and Zoom per trace; user-definable trace labels
• Countdown timer function for Decrement test

Software applications

• NCS: Motor and Sensory Nerve Conduction, F‑Wave, H‑Reflex, Decrement Test, Blink Reflex, Inching, Sympathetic Skin Response, Collision Test, MUNE
• EMG: Spontaneous EMG, Quantitative EMG, AMUP analysis, Interference Pattern Analysis, Single Fiber EMG, Multi-channel EMG (GPP), Macro EMG
• EP: Auditory, Somatosensory and Visual Evoked Potentials, P300/CNV, Electrooculography, Electronystagmography, Electroretinography
• Additional modules: Heart Rate Variability, IOM, Normative Reference Values, MPP program, MS Word® Report Generator

Introduction
SURPASS II is an advanced system for quantitative electromyography, nerve conduction studies and evoked potential diagnostics. Developed from over 30 years of neurophysiology experience, it combines modern hardware and multimodal software to support a wide range of clinical protocols. The QSA averaging technique can reduce recording time by up to 60%. The fully programmable Multimodality Stimulator allows combined stimuli for AEP, SEP, VEP and ERP workflows. The digital amplifier provides high‑quality, high‑speed recordings and can be expanded to 24 channels. USB 2.0 connectivity minimizes analog noise and the integrated 8‑bit trigger I/O supports complex stimulation setups. Both desktop and portable units run on Microsoft Windows with an MS Access patient database and a flexible report generator. A color‑coded control panel and intuitive display options improve daily examination workflow.

Technical specifications

• Amplifier: high-speed bipolar amplifier, expandable to 24 channels
• Interface: USB 2.0 to reduce analog noise interference
• System versions: desktop and portable
• Operating system & database: Microsoft Windows with MS Access patient database
• Report generator: programmable report generator (MS Word® Report Generator available)
• Stimulator: fully programmable Multimodality Stimulator supporting combined stimuli for AEP/SEP/VEP/ERP
• Averaging: QSA averaging technique reduces recording time by up to 60%
• Trigger I/O: integrated 8‑bit inputs and outputs for complex stimulation
• Display: up to 99 waveforms in cascade or split view; Roll and Zoom per trace; user-definable trace labeling
• Special functions: Countdown timer for Decrement test; raw data storage on hard disk for retrospective analysis
• Software: comprehensive modules for NCS, EMG, EP, ERP, IOM and additional analysis programs
