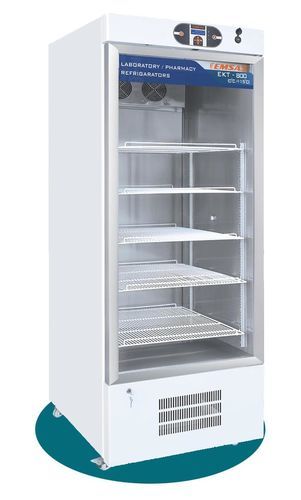

Healthcare facility refrigerator EKT 800

for pharmaciesfor vaccinescabinet

Product overview

The EKT 800 vaccine storage refrigerator is designed for clinical and pharmacy cold-chain storage. It provides a 700 L capacity with a controlled operating range of +1/+10 °C (factory set to +4 °C) and can be configured to meet standard 2–8 °C vaccine requirements. Interior surfaces are stainless steel Cr-Ni 304 for hygienic storage and easy cleaning.

Options / Accessories

• Circular printer (optional)
• Thermal printer (optional)
• Touch screen
• Vaccine tracking system
• Block door
• Chrome rack
• Basket (optional)
• SMS and Email module (optional)
• Computer connection: USB
• Wheels: 2 braked, 2 regular

Key product features

• Outer body: corrosion‑resistant galvanized sheet with electrostatic paint
• Inner surface: stainless steel Cr‑Ni 304 for hygiene and durability
• Plastic‑coated adjustable wire shelves (user‑configurable)
• Reinforced fan system ensures equal heat distribution
• Quiet operation with fully automatic defrost to preserve evaporator efficiency
• LED interior lighting
• User‑friendly microprocessor digital control with data memory (30 days) and password protection
• Thermostat accuracy: 0.1 °C
• Internal rechargeable accumulator provides 24 h operation of the control panel during power interruption
• Visual and audible alarms for high/low temperature limits, door open, power failure/low voltage
• CFC‑free cooling and polyurethane insulation (environmentally friendly)
• Mobility: two braked and two fixed castors
• Compatible with external temperature/heat monitoring systems

Technical specifications

• Operating range: +1 / +10 °C (factory set +4 °C); configurable for 2–8 °C vaccine storage
• Volume: 700 L
• External dimensions (W×D×H): 800×850×2000 mm
• Package dimensions: 950×950×2000 mm
• Gross weight: 220 kg
• Insulation: 40 mm CFC‑free polyurethane
• Number of shelves: 6 (plastic‑coated adjustable wire shelves)
• Temperature sensor: NTC; thermostat accuracy 0.1 °C
• Control system: microprocessor controlled, USB connection
• Power: 220–240 V / 50–60 Hz; power consumption: 400 W
• Refrigerant options: R134a or R290 (R290 optional)
• Wheels: 2 braked, 2 fixed

Certifications & warranty

• Manufactured according to ISO 9001:2008 and ISO 13485
• CE certified; barcode provided
• All medical devices manufactured by Emsaş A.Ş. include a 2‑year warranty
