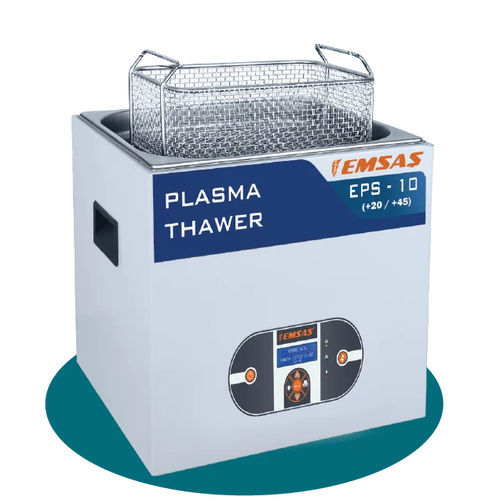

Plasma thawing system EPS 10

stem cellsheating

The device is designed for heating or thawing of blood products stored in blood bags such as erythrocytes, fresh frozen plasma. The device performs the melting process with aqueous system. It is realised by natural circulation movement in the aqueous system. The water tank of the device is 20 litres. Microprocessor control system allows the user to adjust the temperature. The device operating range is (rh+5.....+45 °C. Upper and lower alarm limit temperatures can be set by the user. The device has a stainless steel basket system in which blood bags will be placed. The device operates at 220V, 50Hz. The heater is located in a separate compartment from the inner chamber so that it does not come into contact with water and products. With 300 W heater power, it reaches the desired temperature in a very short time. With the circulation feature, the melting time of the products is shortened. The pool can be emptied in a short time with the drain tap. The device has a PID controlled heating system. In this way, the device can be kept constant at the desired temperature and energy consumption is minimized. The device has a delayed start and timer feature. In this way, the device can automatically turn itself off when the operating program is finished. The device has a user-friendly panel with turn-and-press feature that provides easy use. Emsaş A.Ş. All medical devices manufactured by us have a 2-year warranty. All our products are produced in accordance with ISO 9001:2008, ISO 13485 TSE service location qualification requirements. Technicial Specifications Set Temperature - +37°C Capacity - 4 Bags External Dimensions (W*d*h) mm - 362*333*410
