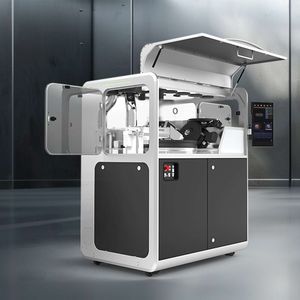

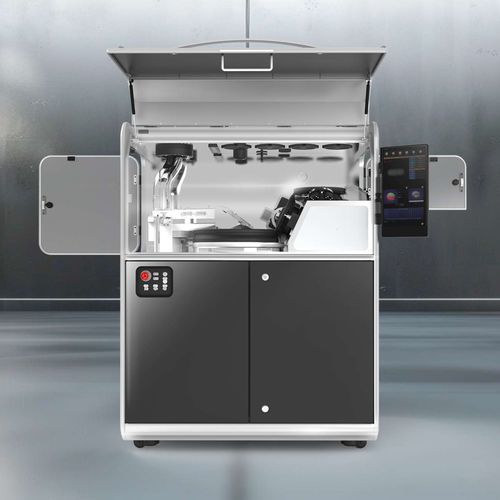

Optical inspection system PLANET EV-T

automaticautomatedfor tablets

Product overview
Vision inspection system for pharmaceutical tablets. The PLANET EV-T automates visual inspection to detect broken, chipped, misshaped or miscolored tablets and supports high-throughput production lines while complying with strict safety and hygiene requirements.

Advantages

• Zero blind spot: 10 2D cameras and 2 3D cameras provide full-angle inspection with no blind zones.
• Defect detection: Identifies cracks, print defects, color variations, chips, misshapes and similar tablet defects.
• Precision feeding: Integrated vibrating screw feeder ensures accurate tablet separation for consistent inspection.
• Guided stability: Pocket guides and rotation control enable stable handling of varied tablet shapes and sizes.
• Triple checking: 3-step safety check prevents cross-contamination during automatic sorting.
• User friendly: Intuitive recipe settings and easy-to-clean design reduce changeover time.
• Smart study: Two-step auto-study learns tablet features and records positional data for repeatable setups.
• Safety: Engineered for operator safety and compliant with applicable industrial safety standards.

Machine speed (tabs/hour) — table
Shape | Size | Speed
Round Tablet (Diameter) | 4.6 ~ 5.3 mm | 425,000
Round Tablet (Diameter) | 5.3 ~ 6.1 mm | 370,000
Round Tablet (Diameter) | 6.1 ~ 7.1 mm | 320,000
Round Tablet (Diameter) | 7.1 ~ 8.2 mm | 280,000
Round Tablet (Diameter) | 8.2 ~ 9.3 mm | 240,000
Round Tablet (Diameter) | 9.3 ~ 10.7 mm | 210,000
Round Tablet (Diameter) | 10.7 ~ 12.4 mm | 180,000
Round Tablet (Diameter) | 12.4 ~ 14 mm | 143,000
Oval / Oblong Tablet (Length) | 10 mm | 230,000
Oval / Oblong Tablet (Length) | 12 mm | 198,000
Oval / Oblong Tablet (Length) | 14 mm | 176,000
Oval / Oblong Tablet (Length) | 16 mm | 154,000
Oval / Oblong Tablet (Length) | 18 mm | 132,000
Oval / Oblong Tablet (Length) | 20 mm | 110,000
Oval / Oblong Tablet (Length) | 22 mm | 99,000

Notes
Product video demonstrating the system and inspection flow is available.

Technical specifications

• Model: PLANET EV-T (commercial designation)
• Brand: ENCLONY
• Cameras: 10 × 2D cameras + 2 × 3D cameras for full-angle inspection
• Defect detection capabilities: cracks, print issues, color variations, chips, misshapes and similar defects
• Feeding: Built-in vibrating screw feeder for precise tablet separation
• Stability & handling: Pocket guides and rotation control to support any tablet shape/size
• Sorting safety: 3-step triple checking to prevent cross-contamination during automatic sorting
• Learning: Two-step auto study that learns tablet features and stores positional data
• Throughput: See machine speed table above (speeds vary by tablet shape and size)
• Machine dimensions & drawings: Top View / Front View / Right View / With Drum Lift — drawings (PDF & DWG) available for download
