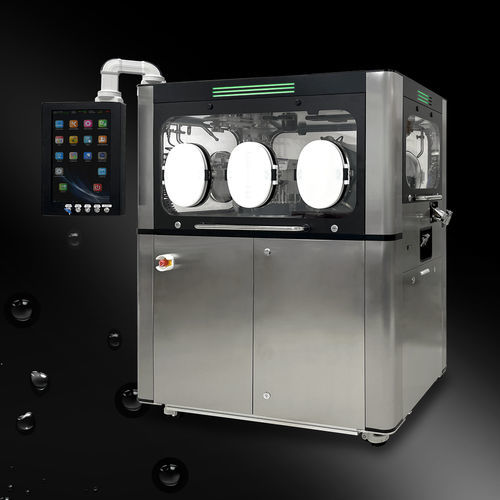

Optical inspection system PLANET EV CI

automaticfor the pharmaceutical industryfor tablets

Overview Designed for highly potent drugs, PLANET EV CI (Containment Vision Inspection System) prevents external exposure by perfect sealing during inspection and automatically cleans the interior after inspection. The system prevents powder dispersion and protects operators when handling high-potency pharmaceutical materials.

Core Benefits

• Perfect sealing solution for containment during inspection.
• Fully customizable equipment to fit production environments and needs.
• Designed for full sealing, waterproofing, and in-place cleaning (WIP) operations.
• Engineered for operator protection and highest safety standards.

Operator Protection Equipped with a fully sealed system that meets OEB Level 5 standards to protect operators from exposure to highly potent materials.

WIP (Wash-In-Place) System Designed for full sealing and waterproofing with accessories to support Wash-In-Place operations and automatic interior cleaning after inspection.

Inspection Capabilities

• Zero blind spot inspection using multiple cameras for complete coverage.
• Utilizes numerous 2D and 3D cameras to ensure complete visual inspection (configurations cited include combinations such as 10 2D + 2 3D and setups using 14 2D + infrared for capsule inspection).
• Inside & out inspection for capsules: inspects capsule shape and internal content with 2D and infrared cameras.

Defect Detection

• Tablet defects: detects cracks, poor printing, and color inconsistency.
• Capsule defects: detects double caps, printing errors, weight issues and internal content anomalies.

Precision Feeding & Handling Equipped with a precision vibrating screw feeder for flawless separation and transfer; guided positioning using a wide variety of pocket and rotation guides for reliable sorting of products of all shapes.

User Friendliness & Smart Study Simplified recipe settings and easy cleaning to maximize operational efficiency. Machine learning stores unique optical characteristics of each product to improve detection and reduce false rejects.

Technical specifications

• Model / Series: PLANET EV CI (Containment Vision Inspection System).
• Containment level: Fully sealed system meeting OEB Level 5 standards.
• WIP support: Designed for in-place cleaning and waterproofing; automatic interior cleaning after inspection.
• Camera configuration: Multi-camera system including numerous 2D cameras and multiple 3D cameras for zero blind spots (site references cite configurations such as 10 2D + 2 3D and separate mentions of 14 2D + infrared for capsule inspection).
• Capsule inspection: Inside and outside inspection capability, including infrared imaging for internal content checks.
• Feeding system: Precision vibrating screw feeder for separation and transfer.
• Guides: Multiple pocket guides (e.g., 25) and rotation guides (e.g., 20 types) for reliable positioning and sorting of various shapes.
• Defect detection: Capable of detecting cracks, printing defects, color inconsistencies, double caps, printing errors, and weight issues.
• Safety features: Three-step safety/triple-checking system to ensure accurate sorting with minimal mix-up risk.
• Customizability: Flexible customization to adapt to different dosage forms and production environments.
