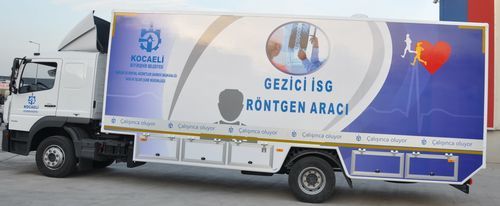

Radiography mobile health vehicle

box body

Product name
Box-type Mobile X-ray Unit

Overview
This box-type mobile X-ray unit is configured for on-site radiographic examinations and built to customer specifications. The vehicle module comprises three main zones: a lead-lined X-ray room with an adjacent patient changing area, an entrance work area with desk and cabinets for paramedic patient records, and a dedicated staff room.

Main components

• Lead-lined X-ray room where the X-ray generator and image acquisition are performed; adjacent patient changing room.
• Entrance work area with desk and cabinets for paramedic use and patient record management.
• Staff room for breaks and on-duty use when the unit is not performing examinations.

Structure and materials
The chassis is constructed from steel profiles. The superstructure uses ABS exterior panels with styrofoam and insulation foam between panels. Interior rooms, fittings and cabinets are manufactured from foamboard materials suitable for medical interiors.

Electrical and equipment provisions
The electrical installation is designed to support the X-ray system and associated equipment, including computer workstations and air conditioning. Provisions are included for power distribution, grounding and ventilation according to customer requirements.

Storage and customization
Lower chassis compartments provide storage for items such as generators and technical equipment. The unit can be customized and built on large, medium or small vehicle chassis to meet operational and site constraints.

Technical specifications

• Vehicle type: Box-type mobile X-ray unit (mobile medical vehicle)
• Main structure: chassis in steel profiles
• Superstructure coating: ABS panels
• Insulation: styrofoam and insulation foam between panels
• Interior: foamboard rooms and cabinets
• X-ray room: lead-lined with adjacent patient changing room
• Work area: entrance desk and cabinets for patient records
• Staff area: dedicated staff room
• Electrical installation: designed for X-ray device, computers and air conditioning
• Lower compartment storage: for generator and equipment
• Customization: configurable on large, medium or small chassis
