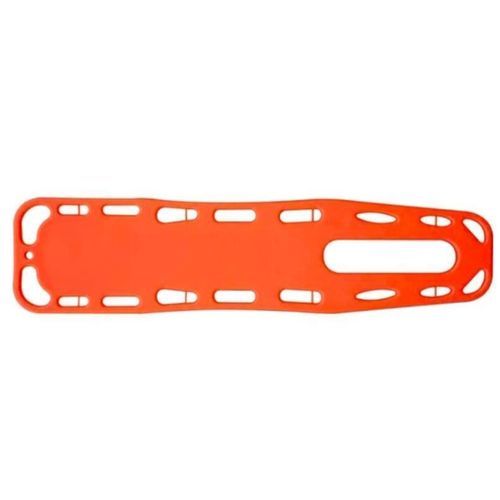

Plastic backboard stretcher

X-ray transparent

Product Description
Spine Board is an emergency-response device designed to restrict patient movement during transport and to support suspected spinal or limb injuries. It is intended for use with a head immobilizer and securing straps when required. The board enables safe, stable transfer after traffic or workplace accidents, rescue operations and other traumatic incidents where spinal protection is needed. Proper immobilization reduces the risk of secondary injury and helps maintain the patient’s condition during handling and transport. The Spine Board is suitable for ambulances, hospitals, clinics, rescue teams, schools, public institutions, construction sites, sports facilities and other locations where emergency response may be required.

Spine Board Features

• Manufactured from ABS using a vacuum-forming process
• Head section compatible with standard head immobilizers
• Surface permits cardiopulmonary resuscitation (CPR)
• Radiolucent design allows X-ray imaging without removal
• Optional use with belts/straps for secure fixation
• Total of 10 right- and left-side hand grips for multi-person handling
• Lightweight, hydrodynamic profile; floats on water

Technical specifications

• Length: 1830 mm (±20 mm)
• Width: 440 mm (±20 mm)
• Height (thickness): 40 mm (±20 mm)
• Weight: 7 kg (+2 kg)
• Load capacity: 180 kg (+2 kg)
