Flexible radiation shielding panel

for radiation therapy roomslead

Overview
Safe fluoroscopy procedures with C-Table. The custom-made set of Lower Body Shields offers high-level X-ray protection for physicians and medical personnel with a lead equivalent value of Pb 0.50 mm. The shields are developed for C-Arm imaging and pain management procedures and are intended to be applied on both sides of the table for maximum protection.

Design & Features

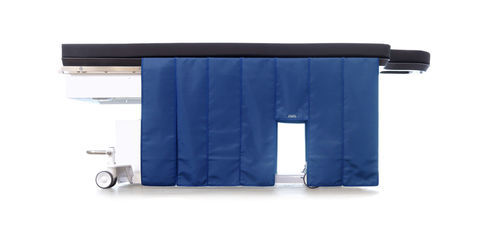

• Standard set comprised of flexible lead strips, designed to be mounted along both sides of the C-Table.
• Easy mounting and rearranging using a durable loop fastener system.
• Strips are flexible and lightweight and contain no ferromagnetic materials.
• Provides high-level radiation protection while allowing space for the C-Arm.

Set composition

• Standard set contains a total of 14 lead strips: twelve strips sized 75 x 19 cm and two shorter strips sized 40 x 19 cm (to provide space for the C-Arm).
• Lead protection value: 0.50 mm Pb equivalent.

Technical specifications

• Application: Lower body X-ray shielding for C-Table / C-Arm procedures.
• Lead equivalent: Pb 0.50 mm.
• Standard set composition: 12 × 75 × 19 cm strips + 2 × 40 × 19 cm strips (total 14 strips).
• Mounting method: durable loop fastener (easy to mount and rearrange).
• Material properties: flexible, lightweight, non-ferromagnetic.
• Designed to allow space for C-Arm movement and positioning.
• Associated product imagery / references: Set EQ001-75 and EQ001-40 (as shown in product images).
