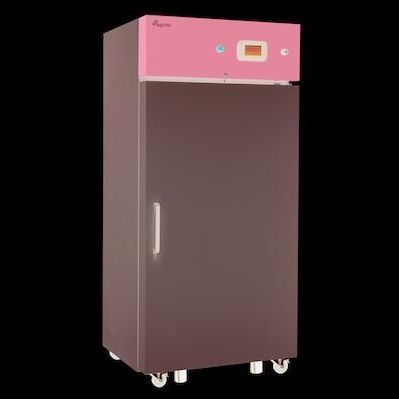

Climatic test cell EICHS 351
temperaturehumiditylaboratory

climatic test cell
climatic test cell
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Applications
laboratory
Number of doors
1-door
Other characteristics
automatic
Capacity

Max.: 2,901 l
(766.4 gal)

Min.: 191 l
(50.5 gal)

Temperature range

Max.: 60 °C
(140 °F)

Min.: 4 °C
(39.2 °F)

Description

*Temperature range +4°C to +60°C .). *S4000 controller in EICHS test models, with graphical representation of data. *4.3" backlit TFT touch screen for temperature and/or humidity control with graphical representation of temperature and/or humidity curve. *Precision of +/- 0.1ºC on screen. Homogeneity of + /-1.0 ºC inside the chamber at 37ºC. *Stability of +/-0.5ºC inside the chamber at 37ºC. *Refrigeration system controlled by solenoid valves. *Safety thermostat, protects samples against high temperatures. *The microprocessor control parameters control the temperature through a Pt100 probe, with a resolution of +/- 0.1ºC. Control system with battery backup, with automatic recharge, duration up to 48h. *Electronic probe (4-20mA) with an accuracy of +/- 2% RH (optional 1.0 % R.H.). *Condensation refrigeration drying system. *Internal door of thermal glass, with hermetic closing. *Opaque external door, with opening aids and large handle. *Optional: double glazed external door with large handle. *Microprocessor for control parameters with PID system. *Independent alarms, visual and audible, for maximum and minimum temperatures, with NiCd backup battery, of more than 48 h duration (72h optional).
