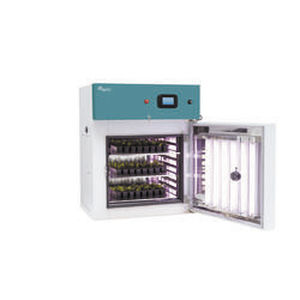

Climatic test cell EGCHS series

temperaturelightingfor plant growth

Temperature range from -10º C to +60ºC with lights off, (programmable day/night temperature). Humidity control: Working range from 40% to 90% R.H. (+/-3%), in a temperature range +15ºC to +40ºC. Control panel with touch keyboard 4,3 "TFT Electronic data logger with graphical representation of the data. Temperature and/or humidity control. Light intensity control, day/night photoperiod. Probe with an accuracy of 0.1º C. Homogeneity of the chamber +/-0,5ºC. at 27ºC and +/-1,0ºC. at 40ºC Stability in the chamber +/-0,1ºC. at 27ºC and +/-0,3ºC. at 40ºC Microprocessor for the control and programming of parameters with PID system. Ultrasonic humidifier system Door and side lights. Light control in 6 intensity levels, allows to simulate the sunrise / sunset. Optional Accesories: Optional Accesories: Additional lights inside the camera with different positioning configurations. Regulation of the air speed between 0.2 m s and 0.5 m s, ensuring optimum temperature uniformity. Air drying system up to 15% RH at +4ºC. Humidity generator up to +90% RH LED lights on shelves, door and sides; in the wavelength range of the sunlight spectrum: 380 - 720nm Circular temperature and/or humidity recorder for 7 days, powered by an independent backup battery. Printer for temperature and humidity records. RS 485/232 connection for remote control. Potential-free output for remote alarm control External data storage with USB connection. Access port for inserting cables, probes and connecting external/internal instruments PC software (on demand). UV light tubes for sterilization.
