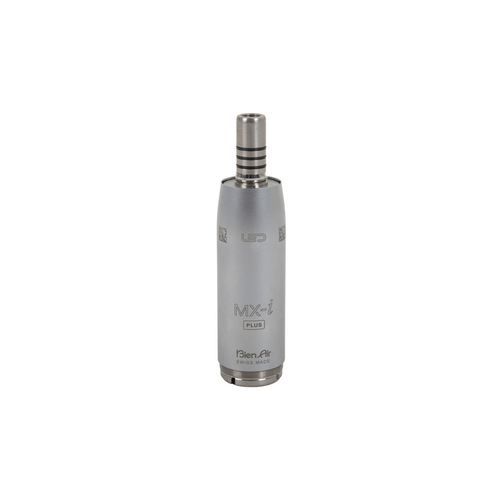

Dental surgery micromotor MX-i LED PLUS

dentalfor dental implantologyfor dental implants

Short description
The Bien Air MX-i LED PLUS dental micromotor is designed for implant and surgical dental procedures, delivering stable performance across the full speed range. Smart Logic torque management and adjustable LED illumination on the contra-angle support precise and comfortable clinical work.

Key features

• applications: implant and surgical procedures
• type: Brushless, self-ventilated
• speed range: 100-40,000 rpm
• maximum torque: 6 Ncm
• torque control
• lighting: dimmable LED on contra-angle
• sound level: 53 dBA
• sterilizable
• pipe rotation: 0°
• compatible with all type E handpieces
• lifetime lubricated ball bearings
• weight: 115 g
• dimensions: Ø 23 x 91 mm

Detailed description
The MX-i LED PLUS micromotor provides high stability and consistent power delivery at both low and high speeds. Smart Logic technology continuously adapts motor power to the selected speed, ensuring optimal torque when performing complex implant procedures. The unit combines high torque with a lightweight ergonomic body to improve clinician comfort during long interventions.

Technical specifications

• Product reference: MOTMXILED
• Brand: Bien Air
• Model family: MX-i LED PLUS
• Motor technology: Brushless, self-ventilated
• Speed: 100 - 40,000 rpm
• Maximum torque: 6 Ncm
• Torque management: torque control (Smart Logic)
• Illumination: adjustable/dimmable LED on contra-angle
• Noise emission: 53 dBA
• Sterilization: sterilizable handpiece
• Rotation of pipe: 0°
• Compatibility: compatible with all type E handpieces
• Bearings: lifetime lubricated ball bearings
• Weight: 115 g
• Dimensions: Ø 23 x 91 mm
