Dental contra-angle Bien Air Nova

airmultiplierminiature

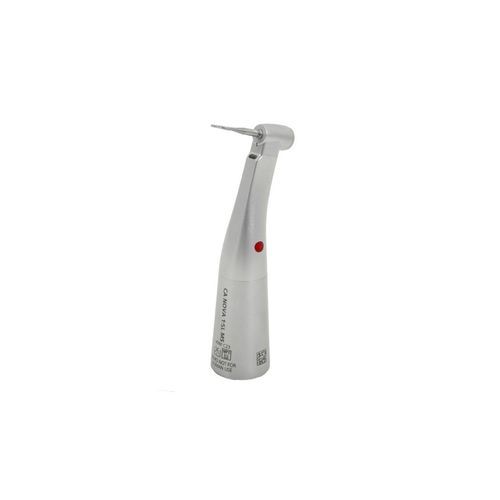

Overview The Bien Air NOVA 1:5 L red ring contra-angle is a dental rotary instrument equipped with light. Its small conical head and slim stainless-steel one-piece body reduce vibration and noise while providing very compact dimensions.

Main features

• Gear ratio: 1:5 multiplier
• Compatible with CA burs Ø1.6 mm
• Maximum speed: 200,000 min-1
• Accu-Spray Quattro-Mix: 4 separate air/water sprays
• Single multi-strand glass drive rod
• Ceramic bearings
• Small conical head: Ø 6.3 mm x 13.7 mm
• Durability: 2× longer life, 4× more shock resistant (manufacturer data)
• Thermal control: Cooltouch+ anti-heating technology
• Backflow protection: non-return valve and Sealed Head
• PVD-coated clamping system
• Cylkro gear to reduce friction and wear
• Equipped with light

Detailed description Optimized gearing and a stainless-steel one-piece handle reduce vibration and noise. The Cylkro gear limits friction and wear. The PVD coating on the clamping system improves surface finish, increases resistance to wear and scratches, and strengthens the opening/closing mechanism to reduce the risk of jamming. The contra-angle includes a non-return valve and Sealed Head protection to limit backflow and suction effects. Cooltouch+ prevents heat accumulation. The Accu-Spray Quattro-Mix injects four air/water sprays toward the bur tip for controlled irrigation. This specific reference is equipped with light.

Technical specifications

• Reference: BAIR-CANOVA15
• Brand: Bien Air
• Model / Series: NOVA
• Gear ratio: 1:5
• Compatible burs: CA burs Ø1.6 mm
• Maximum speed: 200,000 min-1
• Spray system: Accu-Spray Quattro-Mix (4 separate air/water sprays)
• Drive rod: single multi-strand glass rod
• Bearings: ceramic bearings
• Head dimensions: conical head Ø 6.3 mm x 13.7 mm
• Durability: 2× longer life, 4× more shock resistant (manufacturer data)
• Thermal management: Cooltouch+ anti-heating technology
• Backflow protection: non-return valve and Sealed Head protection
• Clamping system finish: PVD coating
• Gear technology: Cylkro gear
• Light: equipped with light
• Weight: 0.5 kg
• Availability: Replenishment in progress
• Price (excl. VAT): 1250 EUR
