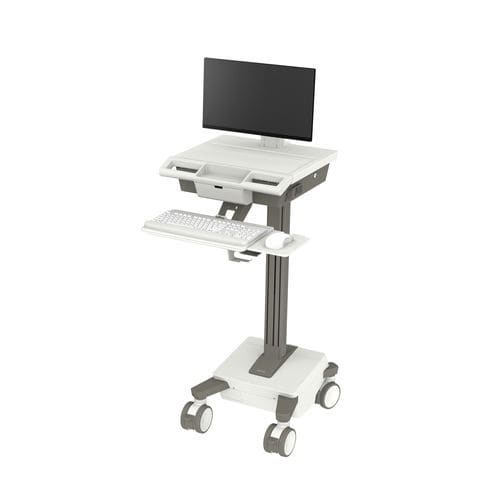

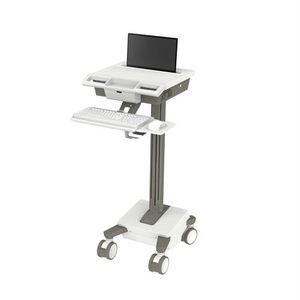

Point-of-care computer cart Mosaic™

securemodular

Overview
Mosaic™ provides flexibility, customization and scalability for healthcare systems seeking a new standard. Configure a workstation-on-wheels that matches nurses' needs for comfortable, safe and efficient documentation. Modular accessories, a wide adjustment range and an easy-to-service design enable quick redeployment as workflows evolve.

Product Features

• Standardize with confidence: modular accessory options support specialty workflows; easy servicing allows rapid redeployment as needs change
• Ergonomic design: broad adjustment capability and considered layout reduce caregiver strain during long shifts
• Improved patient care: streamlines documentation so clinicians spend more time with patients and less on equipment
• Effortless maneuverability: compact footprint and ultra-smooth premium casters for easy travel to the point of care
• Add-on power option: optional portable power with hot-swappable batteries for onboard devices
• Quality construction: tested for 100,000 motion cycles to ensure a minimum of five years of sit-to-stand height adjustment

Key Features

• Open-architecture design accommodates future hardware upgrades
• Badge-scanning location accepts customer-supplied RFID
• Multiple accessory interfaces: vertical rear T-slot; channels under technology enclosure; optional horizontal T-slots on back of enclosure and/or adjacent to VESA
• Technology enclosure with removable, key-locked top worksurface for secure access; stores PC and cables; enables data connectivity via 4-port USB hub
• Technology enclosure interior dimensions: 16.4" x 12.6" x 3" (41.5 x 32 x 7.5 cm)

True Ergonomics

• Dual-wheel 5" (13 cm) casters with four locking (one tracking) for easy push/pull mobility
• Ergonomic back-tilt keyboard tray with left-or-right mouse tray to keep wrists neutral during data entry
• Optimized for users 5'0" to 6'1" (152 to 185 cm) for comfortable sit-to-stand use
• Patented Constant Force™ motion technology minimizes force required to adjust cart, enabling easy position changes

Safety

• Tested to ES/EN/IEC specifications for patient safety
• Environmentally compliant: RoHS, REACH, WEEE and EU (94/62/EC) packaging
• Designed to meet ANSI guidelines for computer use

Includes

• Cart
• LCD mount
• Technology storage enclosure
• 4-port USB hub
• Worksurface
• Document holder
• Badge-scanning location
• Front bin
• Front and rear handles
• Height-adjustment brake
• Keyboard tray with slide-out mouse area and wrist rest
• Mouse pouch
• 4 locking casters (1 tracking caster)

Specifications

• GTIN (EAN): 00698833093810
• Part Number: M011-0101-100000-1-0
• Model / Description: Mosaic LCD Cart, Non-powered, No Drawer
• Shipping Weight: 41.3 kg
• Weight Capacity: total maximum load on height-adjustment assembly = 43 lbs (19.5 kg) — includes combined weight of monitor, keyboard tray, worksurface, technology enclosure and accessories
• Allowable monitor weight: 5 to 14 lbs (2.3 to 6.4 kg), or ≤ 20 lbs (9.1 kg) with lift-height locked
• Lift Range: 25" (64 cm) total; 20" (51 cm) sit-to-stand adjustment + 5" (13 cm) independent monitor-height adjustment; addition of 3 rows of drawers limits sit-to-stand adjustment to 16" (41 cm)
• Keyboard tray: extends/retracts 7.5" (19 cm), rotates up to 180° and tilts up to 12°
• Portrait/Landscape Rotation: 360°; lock-out screw can fix rotation position
• Warranty: Five years
• Ships fully assembled
• Note: If adding drawers to a Mosaic cart not pre-configured with drawers, a Drawer Top Plate accessory (MD-100000-1-0) is required
