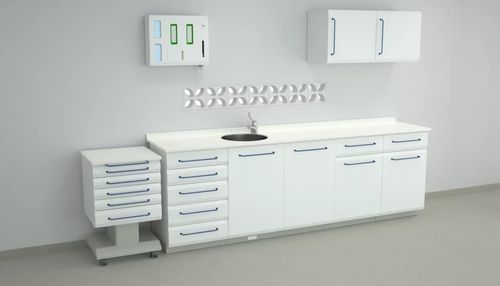

Modular laboratory workstation W21

mobileon casterswith sink

Overview
Modular sink workstation built from W-series modules. Designed for clinical, laboratory or utility environments where configurable storage, integrated sink and hygienic accessories are required. Available in three heights and multiple top finishes.

Main information

• Footprint: 253 x 53.5 cm
• Configuration: W22 + W4(LAV40R) + W7 + W19 + W19; W21 mobile module included (top size 51 cm)
• Available heights (W series): 85.5 cm, 88.5 cm, 95.5 cm
• Tops available: Corian®, laminate, steel, wood
• Standard finish: body RAL 9003; handles RAL 5010 (other handle colours on request)
• Included accessories: DISPENSER, W50P wall unit, LAV40R laminated top with sink and mixer, GM/S

Main Accessories

• W50P — 50 cm wall unit with door and shelf. Dimensions: 50 x 35 x 45.5 h cm
• W100P — 100 cm wall unit with doors and shelf. Dimensions: 100 x 35 x 45.5 h cm
• W100G — 100 cm wall unit with glass door and shelf. Dimensions: 100 x 35 x 47 h cm
• DISPENSER — Dispenser for towels, gloves, masks and cups. Dimensions: 50 x 13 x 39.5 h cm
• QUADRA, LINEA, CURVA — metal handle options (RAL 7038; other colours on request)
• LAMINATED TOP — laminated top with stainless steel sink and mixer set
• CORIAN TOP — Corian® top with integrated Corian sink and mixer set

Technical specifications

• Overall footprint: 253 cm (length) x 53.5 cm (depth)
• Module type: W21 mobile module (on wheels)
• Top module size (W21): 51 cm
• Available heights: 85.5 cm; 88.5 cm; 95.5 cm
• Tops: Corian®, laminate, steel, wood
• Standard colour: body RAL 9003; handles RAL 5010 (other handle colours on request)
• Included accessories example: DISPENSER, W50P, LAV40R, GM/S
• Accessory dimensions (examples): W50P 50 x 35 x 45.5 h cm; W100P 100 x 35 x 45.5 h cm; W100G 100 x 35 x 47 h cm; DISPENSER 50 x 13 x 39.5 h cm
