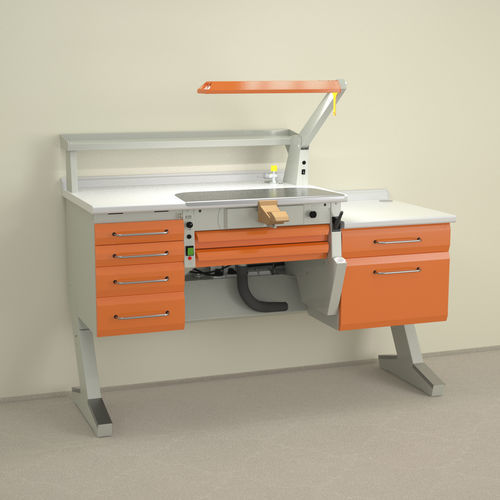

dental laboratory workstation with light
Size: cm 152×60
Accessories: EL, SM, PR, ME(102cm)
Colour: RAL 2008
Images correspondant à In every working place there is a gas tap. Connect each qas tap to the qas pipe network. When the table is powered from the rear, prepare on the wall in connection with one of the two ends of the carrying -cross structure: one electrical socket and one air connection as shown in drawing.
When the table is powered from one side, prepare on the wall where the side is leant to: one electrical socket and one air connection as illustrated in drawing. These instructions are also valid for corner tables.
The length of the work-top in a linear combination of units is equal to the sum of the lengths of all the component units plus 2cm for straight runs, while for comers combination it has to be calculated adding up the lengths of components, ANG excluded (it has not the top), plus 1cm for each side.The special bearing cross-structure with feet adjustable in height acts as a rational duct for air and electricity. The table height can be adjusted according to the request of the technician. It can be produced with a maximum length of 334cm.
The Gas taps are mounted on the top. They are yellow, according to the laws.
The main advantages of the new LED lamps compared to the current fluorescent lights are:
•less power consumption, energy saving;
•the quality of light is constant over the life span of the lamp;
•total absence of flickering and vibration;
•greater resistance to shock and impact;
•longer life the lighting system;
