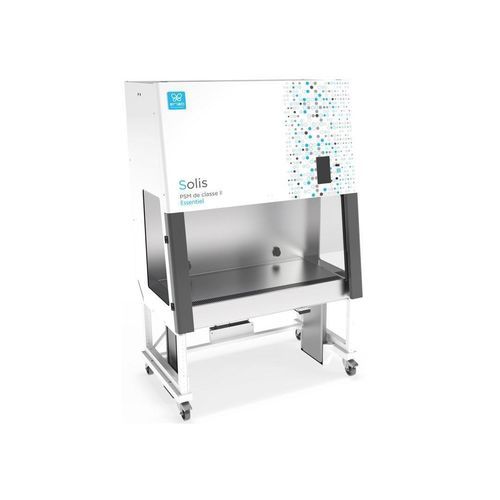

Class II microbiological safety cabinet Solis Classic

containmentasepticlaboratory

The Erlab Class II Biological Safety Cabinet (MSC) is designed to provide triple protection: for the operator, the environment, and the samples handled. It is compliant with EN 12469:2000 and features high-performance HEPA H14 filtration technology (99.995% MPPS according to EN 1822-1:2019), preventing cross-contamination and ensuring clean air in the work area. The cabinet is engineered for simple, reliable, and ergonomic use, combining filtration efficiency, enhanced safety, and easy maintenance. Key Features: - High-efficiency filtration: Equipped with HEPA H14 filters (99.995% MPPS efficiency according to EN 1822-1:2019), ensuring purified air and no cross-contamination in the work chamber. - Active safety and intuitive interface: Real-time monitoring via a clear, comprehensive touch screen. Features include airflow alarm, personalized settings, and built-in applications for total control. - Easy cleaning: Removable work surface and tilting front window for full access to the retention tank, enabling quick, efficient maintenance and optimal decontamination. - Everyday comfort and ergonomics: 10° inclined glass for a natural posture, optional armrests and footrests to reduce fatigue. Regulated airflow and LED lighting > 750 lux for optimal working conditions. Performance: - The work area is swept by a laminar airflow, ensuring clean air free from particles that could contaminate handled products. - Dual ventilation for both supply and exhaust ensures a stable and constant air barrier, regardless of filter clogging. - Air enters through the front window opening; all particles from the outside are drawn into the air barrier to avoid contaminating the handling. - Laminar airflow speed: 0.40 m/s. - About 30% of the airflow is directed to the exhaust filter and released into the laboratory; about 70% passes through the supply filter and is released into the handling chamber, creating a laminar flow (class 100 – ISO 5 airflow). - Compliant with European standard EN 12469-2000. Ergonomics: - LED lighting strips provide uniform illumination over the entire work surface, with adjustable intensity via the touch screen. Safety: - Equipped with HEPA H14 filters for both supply and exhaust, dual EC-motor ventilation, and a powerful air barrier for a protected workspace. - HEPA H14 filters meet current efficiency standards (99.995% MPPS according to EN1822-1) and create a class 3 ISO working environment. - Air is blown into the work area through a HEPA H14 absolute filter at 0.40 m/s across the entire manipulation area, in accordance with ISO 14644 standard. Custom Configuration: - Erlab offers numerous options specifically adapted to the needs of each laboratory. Additional Filtration Options: - Additional HEPA filter: At the exhaust (for handling BK-type mycobacteria) or under the work surface for optimal biological protection. Possible connection to the building’s exhaust system. - Additional activated carbon filter: At the exhaust (for handling chemical products in small quantities; note: this setup may cause recirculation of chemicals in the work area) or under the work surface (highly recommended for handling CMRs – Carcinogens, Mutagens, Reproductive toxins). Applications: - Absolute biological protection for the operator, the handling, and the environment against airborne contamination risks when handling class 2 and class 3 microorganisms and pathogens. Technical Specifications / Characteristics: - Compliance: EN 12469:2000 - Filtration: HEPA H14 (99.995% MPPS, EN 1822-1:2019) - Laminar airflow speed: 0.40 m/s - Lighting: LED, > 750 lux, adjustable - Interface: Touch screen, real-time monitoring, alarms - Construction: Removable work surface, tilting front window - Options: Armrests, footrests, additional HEPA/activated carbon filters - Dual EC-motor ventilation - Class 100 – ISO 5 airflow - Class 3 ISO working environment
