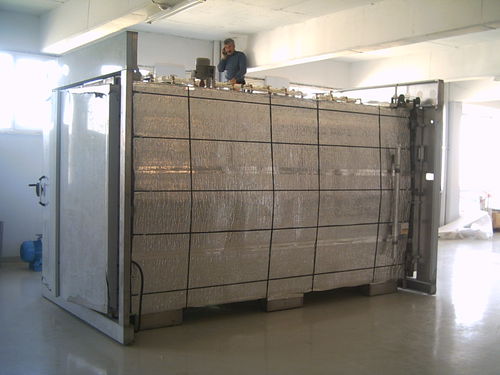

Medical sterilizer

EtOverticalfloor-standing

ERNA Ethylene-oxide gas sterilizers are designed to sterilize thermo-labile equipment and packed disposable medical products at low temperatures (37 – 55C). Sterilizers are designed for the specific client projects with modular systems such as: EtO gas circulation, automatic bottle changeover, EtO scrubber and EtO / H2O concentration sensor. EtO Sterilization Main Parameters are: - Temperature - EtO Concentration - Humidity - Exposure Time All these parameters define the pressure inside the chamber. Chamber: S/S 316L Quality with 5 years of warranty Automatic Control with PLC Easy manual operation by touch panel Alphanumeric printer Independent electronic recorder Pneumatic valves Sterilization at vacuum Volume up to 30 m3 Heating Jacket: S/S 304L Quality, water circulation in 3 different regions Heating Skid: Steam Generator for humidification, and two Heating Tanks Vacuum Pump: Water ring type or Oil ring type ERNA EtO Sterilizer Mechanical Components: EtO Gas Circulation System – For homogeneous distribution of: temperature, EtO concentration and humidity) Evaporator & Vacuum Pump Automatic Bottle Changeover System EtO Scrubber System EtO / H2O Concentration Sensor (infrared technology)
